Locate Fuses—Open Operator's Station

LV14698-UN-25AUG11

LV14694-UN-24AUG11

LV14695-UN-24AUG11

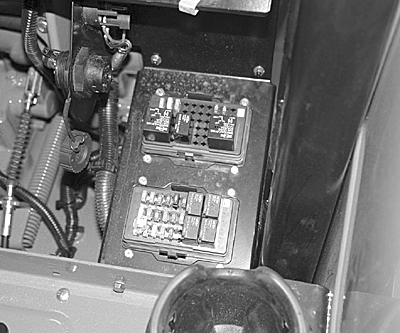

Main Fuse and Relay Load Center (Left-Hand Side Behind Seat)

A - Wing Nuts

B - Access Panel

C - Cover

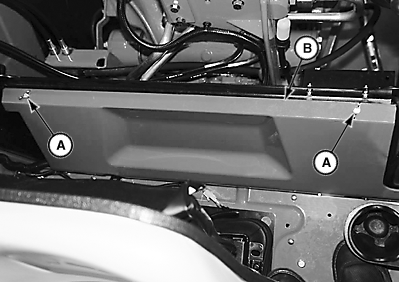

Remove wing nuts (A) and access panel (B).

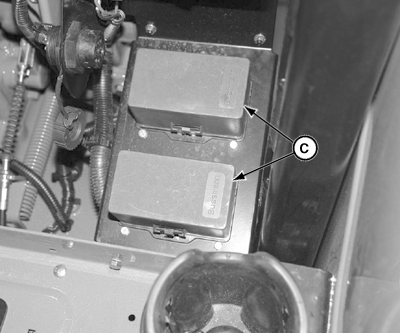

Remove cover (C ) to access main fuse and relay load center.

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating	Color
5 Amp	Orange
10 Amp	Red
15 Amp	Blue
20 Amp	Yellow
30 Amp	Green

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.
