Fuse and Relay Size and Function

Open Operator Station and Low Profile

NOTE: OOS with SyncShuttle Plus™ Transmission—Diode module, relay K07, relay K27, and relay K28 are located in front console.

OOS with PowrReverser™ Transmission or PowrReverser Plus™ Transmission—Diode Module, relay K07, relay K11, relay K27, and relay K28 are located in front console.

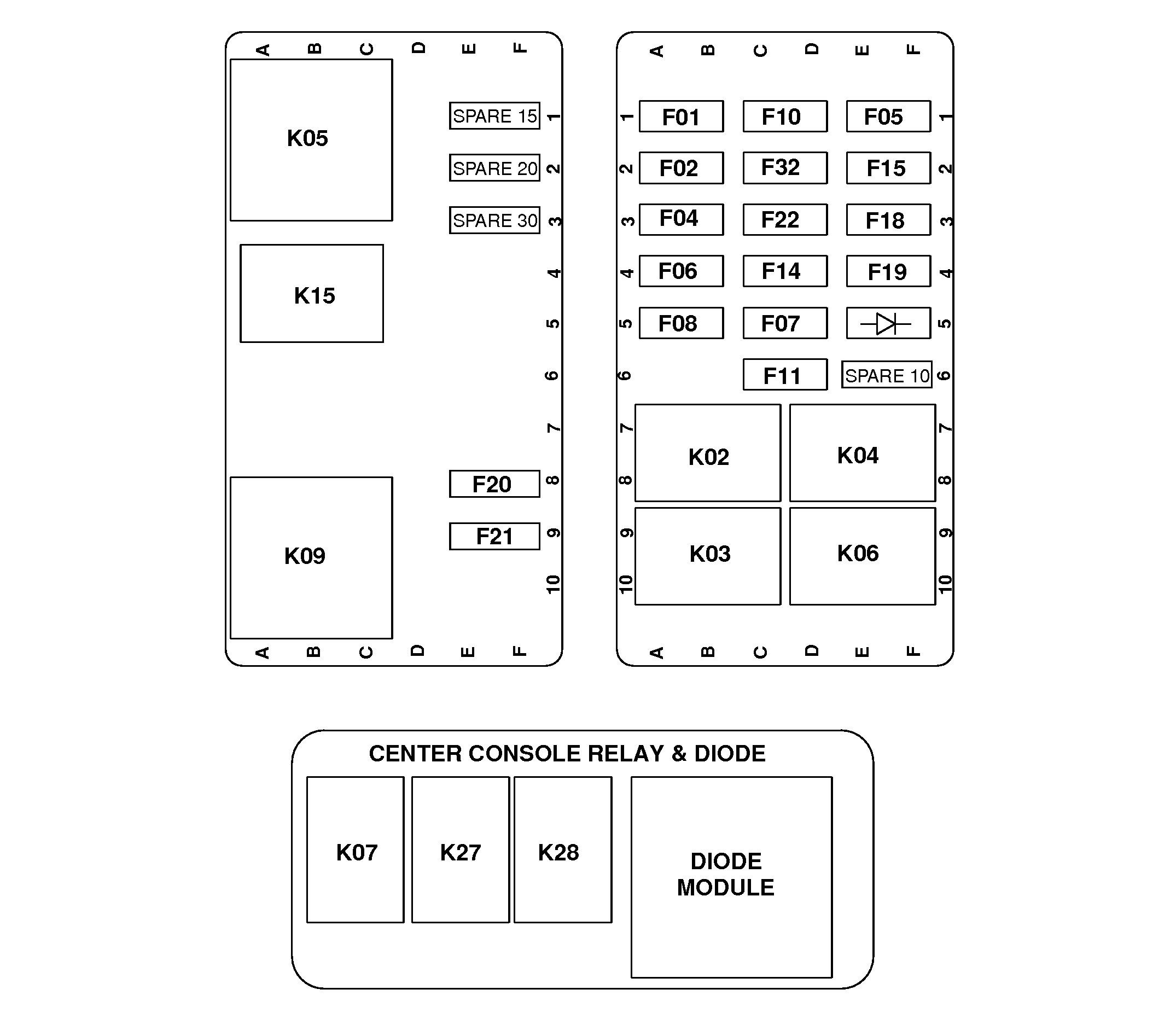

LV14684-UN-22AUG11

OOS with SyncShuttle Plus™ Transmission

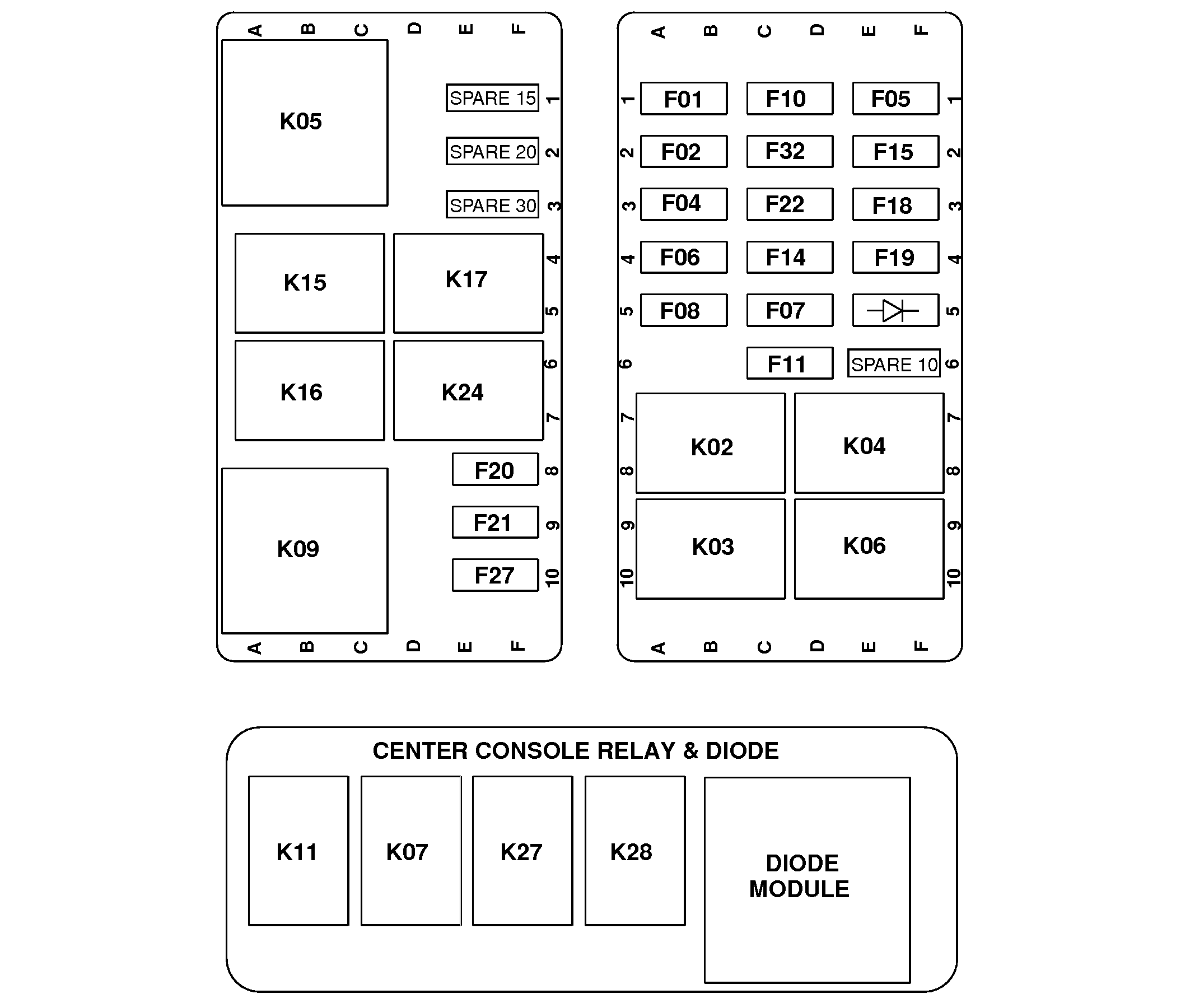

LV14685-UN-22AUG11

OOS with PowrReverser™ Transmission or PowrReverser Plus™ Transmission

F01 - Key Switch Fuse

F02 - Turn Light/Warning Light Relay Fuse

F04 - Light Switch Fuse

F05 - High/Low Beam Headlights Fuse

F06 - Junction Block Fuse

F07 - Turn Switch

F08 - Instrument Cluster Fuse

F10 - Trailer Power Relay Fuse

F11 - Junction Block Fuse

F14 - Front Work Light Fuse

F15 - Tail/Turn Light Fuse

F18 - ELX Fuse

F19 - Electronic Control Unit/Service Advisor Fuse

F20 - Electrohydraulic System Relay Fuse

F21 - Electrohydraulic System Relay Fuse

F22 - Horn Fuse

F27 - Backup Alarm Fuse

F32 - Engine Control Unit Fuse

K02 - Left Turn Relay

K03 - Right Turn Relay

K04 - Flash Logic Relay

K05 - Turn/Warning Light Relay

K06 - Trailer Power Relay

K07 - Accessory Controller Relay

K09 - Work Light Relay

K11 - Neutral Relay

K15 - Electrohydraulic System Power

K16 - Not Neutral Relay

K17 - Transmission Enable Relay

K24 - Forward High Speed Relay

K27 - Headlight Relay

K28 - High/Low Beam Relay

V04 - Electrohydraulic System Relay Diode

Cab

NOTE: Cab with SyncShuttle Plus™ Transmission—Diode module, relay K07, relay K27, and relay K28 are located in front console.

Cab with PowrReverser™ Transmission or PowrReverser Plus™ Transmission—Diode Module, relay K07, relay K11, relay K27, and relay K28 are located in front console.

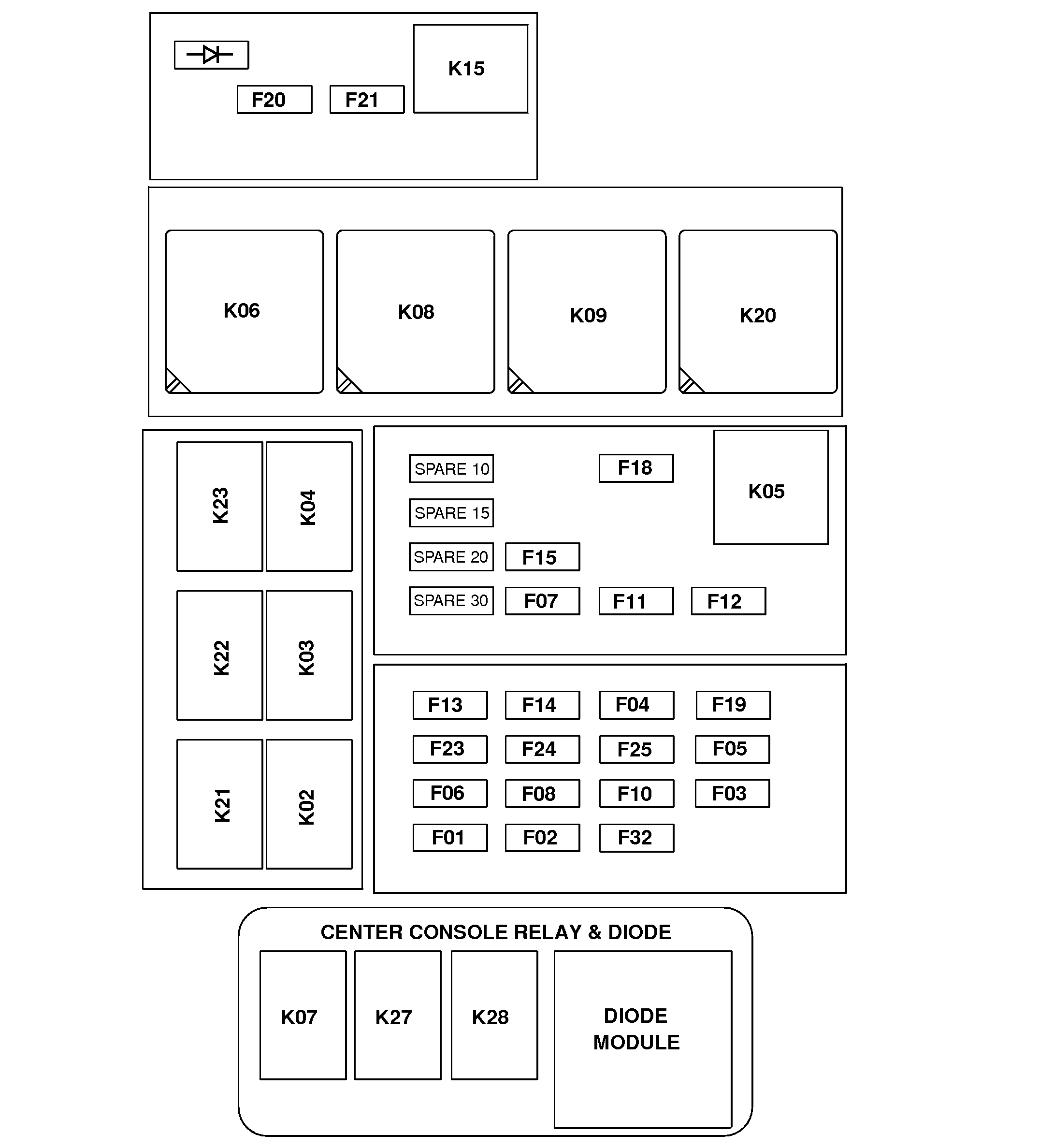

LV14686-UN-22AUG11

Cab with SyncShuttle Plus™ Transmission

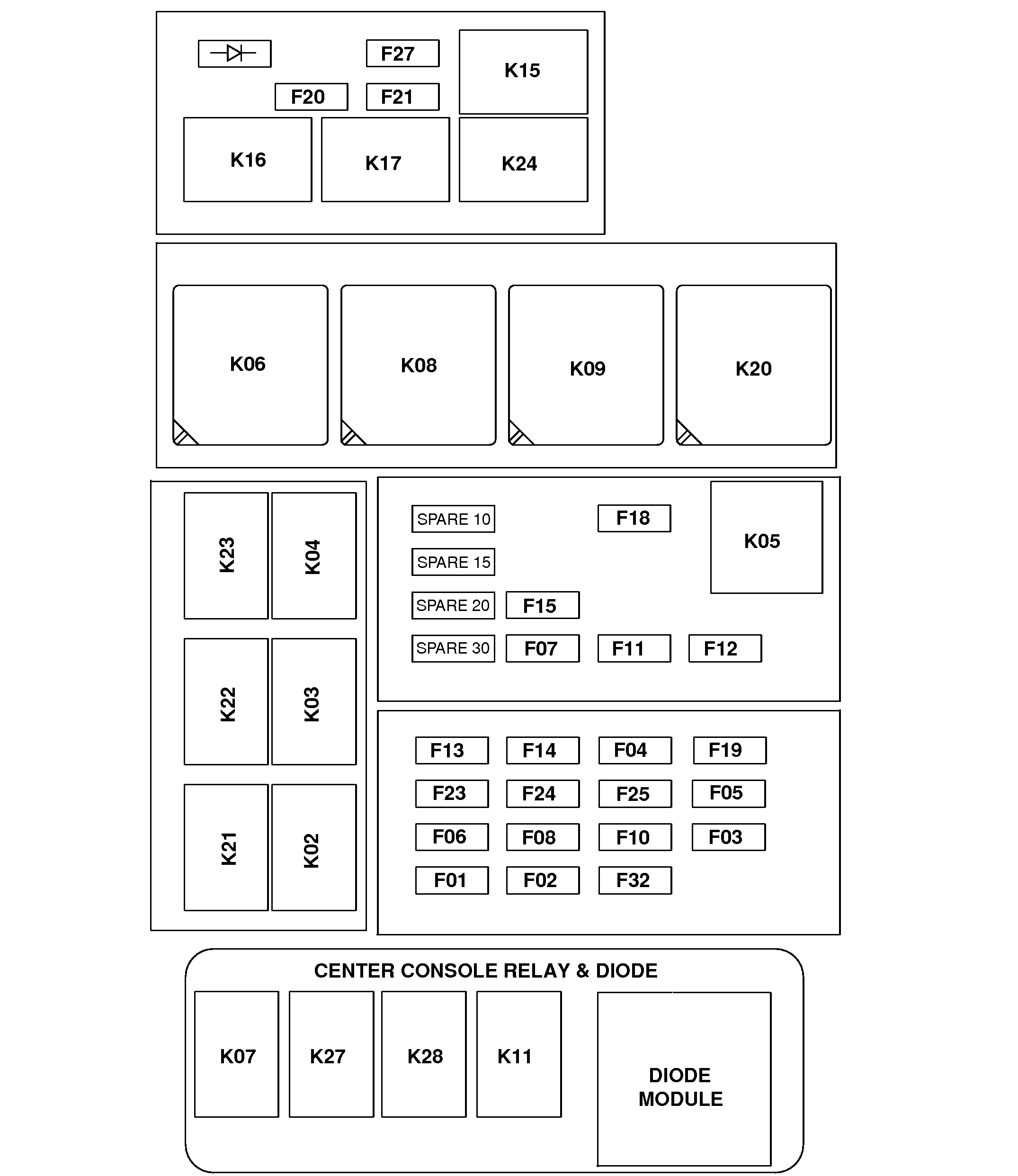

LV14687-UN-22AUG11

Cab with PowrReverser™ Transmission

F01 - Key Switch Fuse

F02 - Turn Light/Warning Light Relay Fuse

F03 - Horn Fuse

F04 - Light Switch Fuse

F05 - High/Low Beam Light Fuse and Loader Light Fuse

F06 - Junction Block Fuse

F07 - Turn Switch

F08 - Instrument Cluster Fuse

F10 - Trailer Power Relay Fuse

F11 - Junction Block Fuse

F12 - Radio/Clock Fuse

F13 - Rear Work Light

F14 - Front Work Light

F15 - Tail/Turn Light Fuse

F18 - ELX Fuse

F19 - Electronic Control Unit Fuse

F20 - Electrohydraulic System Relay Fuse

F21 - Electrohydraulic System Relay Fuse

F23 - Heater, Ventilation and Air Conditioner

F24 - Wiper Motor Fuse

F25 - Blower Fuse

F27 - Backup Alarm Fuse

F32 - Engine Control Unit Fuse

K02 - Left Turn Relay

K03 - Right Turn Relay

K04 - Flash Logic Relay

K05 - Turn/Warning Light Relay

K06 - Trailer Power Relay

K07 - Accessory Power Relay

K08 - Rear Work Light Relay

K09 - Front Work Light Relay

K11 - Neutral Relay

K15 - Electrohydraulic System Power

K16 - Not Neutral Relay

K17 - Transmission Enable Relay

K20 - Heater, Ventilation and Air Conditioner Relay

K21 - Wiper Relay

K22 - Left Blower Relay

K23 - Right Blower Relay

K24 - Forward High Speed Relay

K27 - Headlight Relay

K28 - High/Low Beam Relay

V04 - Electrohydraulic System Relay Diode
