Replace Tail Light Bulb—Cab, Deluxe OOS and Low Profile

1.

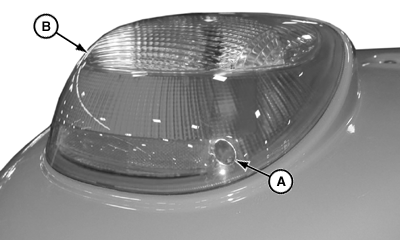

   LV14850-UN-04OCT11

   Cab and Deluxe OOS; Left Side Shown

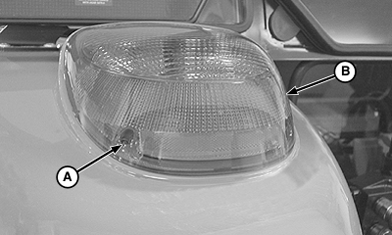

   LV12531-UN-13APR05

   Low Profile; Left Side Shown

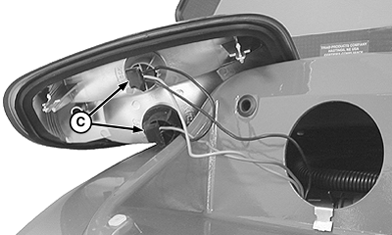

   LV12532-UN-13APR05

   A - Screw (2 used)

   B - Housing

   C - Socket (2 used)

   Remove screws (A).

---




2. Pull housing (B) away from fender.

3. Rotate socket (C) and remove from housing.

4. Pull bulb to remove from socket.

5. Install new bulb and socket in housing.

6. Install housing on fender with screws.
