Replace Work Light Bulb—Open Operator's Station and Low Profile

  1. PULV007318
    PULV007318-UN-29NOV10

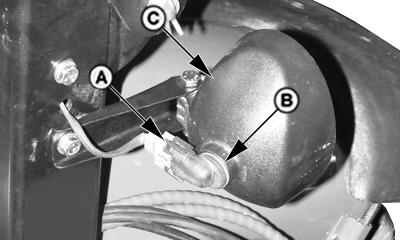

    Left-Hand Side

    A - Wiring Harness Connector

    B - Bulb

    C - Housing

    Disconnect wiring harness connector (A).


  2. Rotate bulb (B) counterclockwise and remove from housing (C).

  3. Install new bulb into housing and rotate clockwise.

  4. Connect wiring harness connector.

    NOTE: Deluxe OOS will have two work lights.

    NOTE: Deluxe OOS shown, low profile similar

JZ81662,0000A15-19-20120328
