Replace Work Light Bulb—Cab

LV5569-UN-07DEC00

LV5570-UN-07DEC00

LV5571-UN-07DEC00

A - Screw Cover Slot

B - Retaining Ring Screw (4 used)

C - Retaining Ring

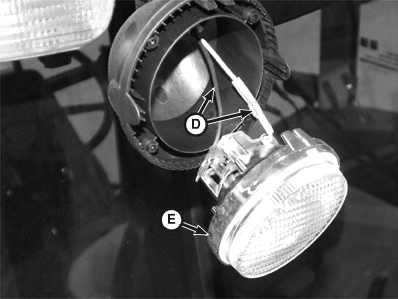

D - Wiring Connector (2 used)

E - Lens

CAUTION: Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying fragments. (See Handle Halogen Light Bulbs Safely in this section.)

NOTE: Bulb replacement procedures for front and rear work lights and optional auxiliary work lights are the same. Rear left side shown.

1. Remove screw cover by prying in screw cover slot (A) with a screwdriver.

2. Remove retaining ring screws (B), retaining ring (C) and lens (E).

3. Disconnect wiring connectors (D).

4. Install new bulb and connect wiring connectors.

5. Install lens, retaining ring and screws.

6. Install cover.
