Drain Water and Sediment from Fuel Filter

IMPORTANT: Place suitable sized container under fuel drain locations (filters, water separator, and tanks). Dispose of waste properly.

LV14402-UN-08JUN11

Rear, Bottom, Left-Hand Side

LV14408-UN-08JUN11

Left-Hand Side

LV14403-UN-08JUN11

Right-Hand Side

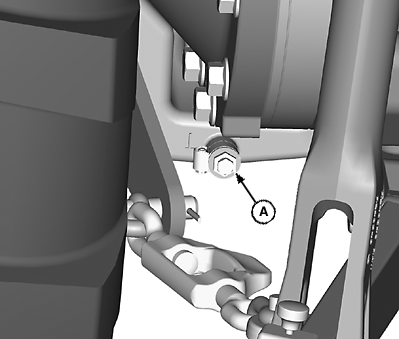

A - Fuel Tank Drain Plug

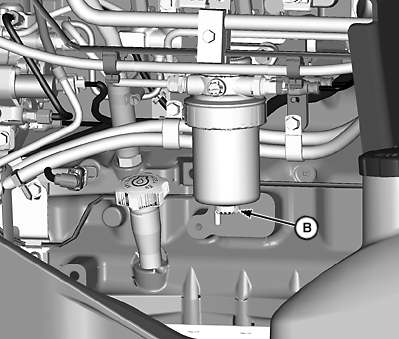

B - Fuel Filter/Water Separator Drain

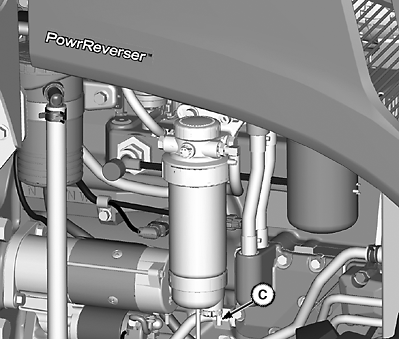

C - Water Glass Bowl Drain

1. Park tractor on level ground and shut off engine. Remove key.

2. Raise hood and open fuel filter/water separator drain (B) and drain (C) of glass bowl to bleed accumulated moisture and sediment from filter. Tighten drains when clear fuel runs from drain.

3. Run engine for minimum of 20 seconds and again check fuel filter drain (B) for moisture and sediments.

4. If moisture or sediments are found, drain fuel tank.

5. Open fuel tank drain plug (A) to bleed accumulated moisture and sediment from fuel tank.

6. ApplyTEFLON® or equivalent to threads of drain plug (A).

7. Tighten plug when clear fuel runs from fuel tank drain plug (A).

8. Lower hood.
