Lubricate Steering Spindles and Steering Cylinder Ends—Adjustable Front Axle

LV14411-UN-08JUN11

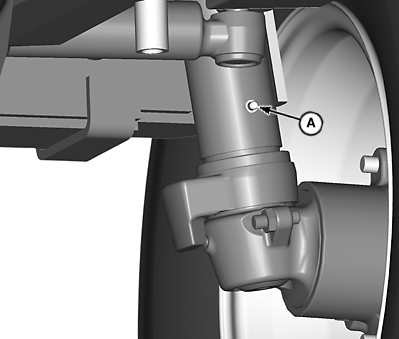

A - Lubrication Point

Apply several shots of general-purpose grease (see Grease in section 85 Fuel, Lubricants, and Coolant) to steering spindle and cylinder end grease point.

NOTE: Daily service is necessary when operating in extremely wet and muddy conditions.

Greasing too frequently can cause seal fatigue.
