Lubricate Hitch Linkage and Hitch Bushing

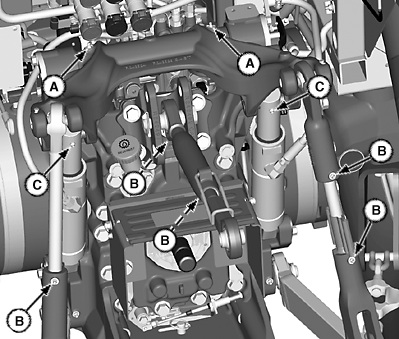

LV14414-UN-13JUN11
Rear Side View
A - Hitch Bushing Grease Point
B - Hitch Linkage Grease Point
C - Lift Cylinder Grease Point
Apply several shots of general purpose grease (see Grease in section 85 Fuel, Lubricants, and Coolant) to hitch linkage and hitch bushing.NOTE: Daily service is necessary when operating in extremely wet and muddy conditions.
Greasing too frequently can cause seal fatigue.
|
JZ81662,0000A28-19-20120328 |
