Change Hi-Crop Rear Axle Oil—5100MH

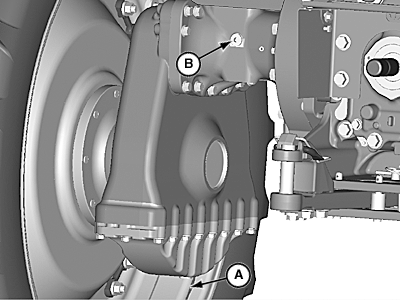

LV14666-UN-18AUG11

A - Drain Plug

B - Fill Port

1. Park tractor on level ground and SHUT OFF engine. Remove key.

2. Remove drain plug (A) and fill port (B). Drain oil into pan and dispose of waste oil properly.

3. Apply TEFLON® or equivalent on thread of drain plug (A).

4. Install drain plug (A).

5. Fill system with transmission-hydraulic oil. (See Transmission and Hydraulic Oil in Section 85.)

   Item	Measurement	Specification
   Hi-Crop Drop Box Oil	Capacity	18.5 L (4.89 gal)

6. Apply TEFLON® or equivalent on thread of fill port (B).

7. Install fill port (B).
