Before Starting the Engine

CAUTION: Prevent asphyxiation by providing adequate ventilation. If operating indoors, use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to ventilate the area.

TS220-UN-15APR13

Engine Exhaust Fumes

1.

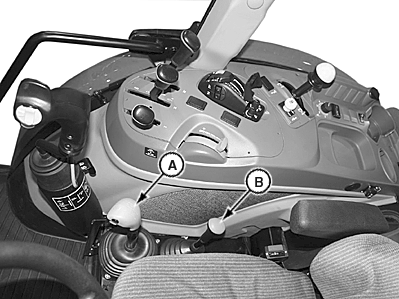

   LV15645-UN-11APR12

   Gear Shift Lever and Range Shift Lever


   PULV004928-UN-18JUN09

   PowrReverser™ Lever

   A - Gear Shift Lever

   B - Range Shift Lever

   C - Reverser Lever

   Transmission Controls: Put gear shift lever (A) in PARK and range shift lever (B) in NEUTRAL.

---




2. If equipped, put reverser lever (C) in NEUTRAL.

3.
   LV14533-UN-02AUG11

   Cab

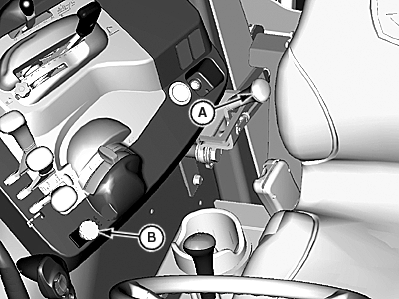

   LV15646-UN-11APR12

   OOS


   PULV004676-UN-16DEC09

   Low Profile

   A - PTO Speed Shift Lever

   B - Rear PTO Switch

   Disengage PTO: Push PTO switch (B) down, then place PTO speed shift lever (A) in neutral.

   NOTE: Do not engage or disengage PTO using PTO speed shift lever (A).

---




4.
   LV14534-UN-02AUG11

   Mechanical Hitch—OOS

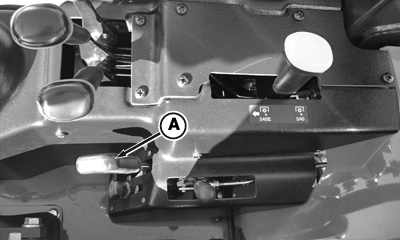

   PULV004677-UN-16DEC09

   Mechanical Hitch—Low Profile

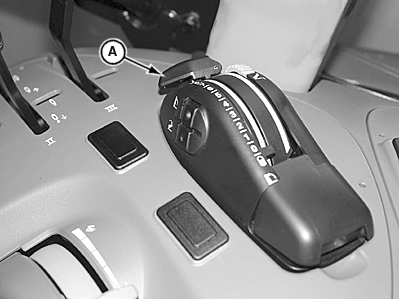

   LV15647-UN-11APR12

   Electrohydraulic Hitch—Cab

   A - Hitch Position Lever

   Push hitch position lever (A) forward to lower equipment to the ground.

---




5. Turn key to RUN position. Check gauges and indicator lights.
