Operate External Position Control—If Equipped

CAUTION: Avoid possible injury or death from tractor movement. Put transmission in PARK before using external raise and lower switches. Stay clear of rotating drivelines and interference points.

LV14566-UN-04AUG11

LV15649-UN-11APR12

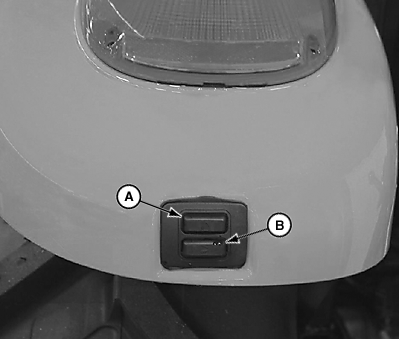

A - External Raise Switch

B - External Lower Switch

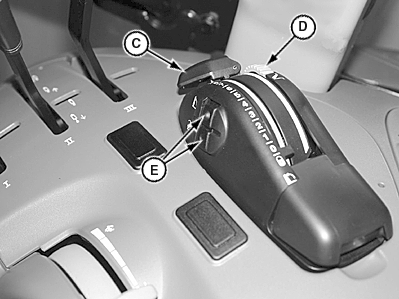

C - Position Control Lever

D - Position Control Lever Stop

E - Quick Raise/Lower Buttons

Press and hold switch to move rear hitch:

Implement is raised when top switch is held.

Implement is lowered when bottom switch is held.

NOTE: External position control (fender mounted) raises or lowers rear hitch at a slower rate and ignores height/depth settings. External position control is disabled when electrohydraulic hitch control lever (C) is set in transport position.

Once either external position control switch is activated, the hitch is prevented from moving accidentally by the position control lever (C) while operator is standing behind the tractor.

To reactivate the position control at lever (C), return to operator’s station and place position control lever (C) at a position that corresponds with hitch position and then actuate quick raise/lower buttons (E).
