Rear SCV Control Lever and Coupler Identification

LV15651-UN-12APR12

Cab Shown; OOS Similar

LV15652-UN-12APR12

LV14587-UN-10AUG11

Deluxe Triple SCV

A - SCV I Control Lever (Green)

B - SCV II Control Lever (Blue)

C - SCV III Control Lever (Brown)

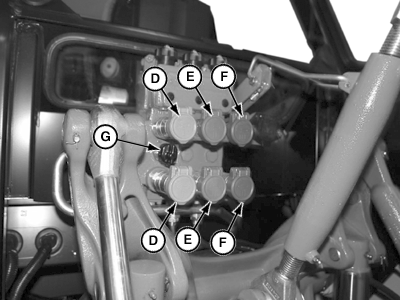

D - SCV I Couplers (Green)

E - SCV II Couplers (Blue)

F - SCV III Couplers (Brown)

G - Adjustable Flow Control

Levers (A—C) control oil flow to corresponding selective control valve (SCV) couplers, located at the rear of tractor. Top couplers are for extension; bottom couplers are for retraction.
