Operate SyncShuttle Plus Transmission

LV15501-UN-28FEB12

Gear Shift Lever and Range Shift Lever (Cab)

LV15502-UN-28FEB12

Gear Shift Lever and Range Shift Lever (OOS)

LV14551-UN-03AUG11

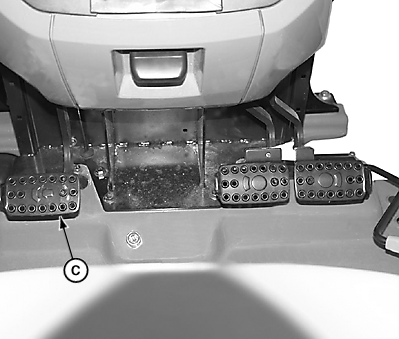

Clutch Pedal (OOS)

LV14572-UN-05AUG11

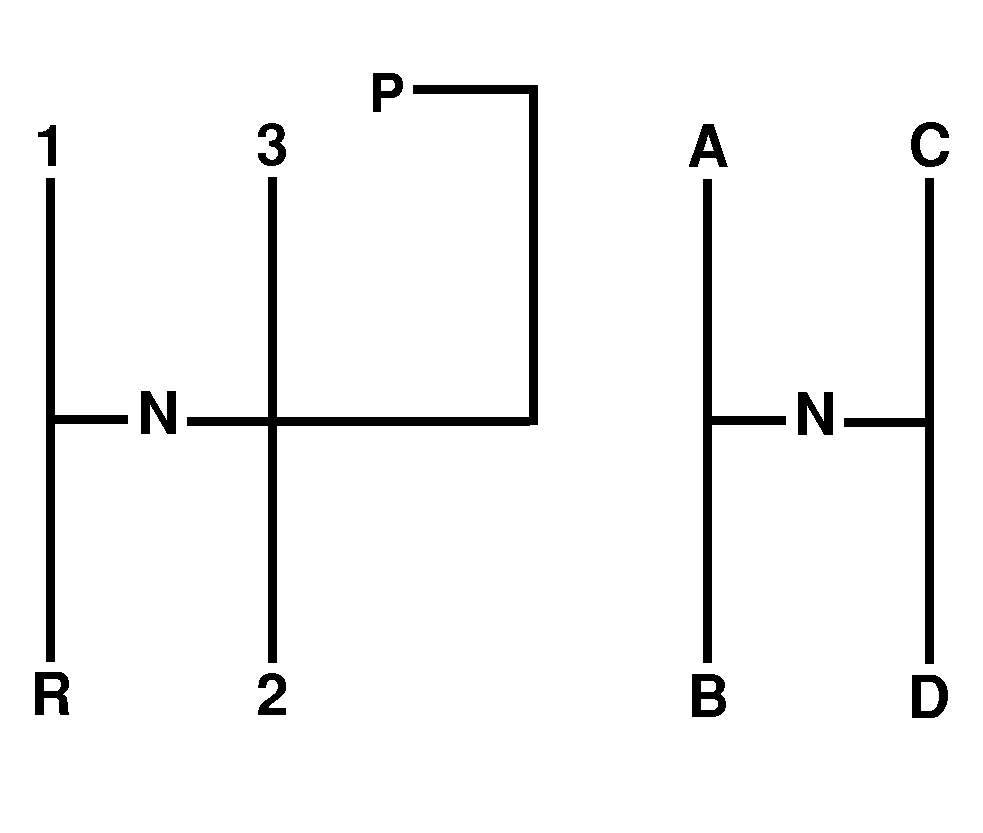

Gear Shift and Range Shift Patterns

A - Gear Shift Lever

B - Range Shift Lever

C - Clutch Pedal

NOTE: No separate shuttle lever mounted to left of steering wheel.

SyncShuttle™ Plus gear shift lever (A) provides three forward (1, 2, 3) travel speeds and one reverse speed.

Twelve forward and four reverse speeds are available when using speed and range shift levers.

NOTE: Slow speed gearing (creeper) is available on separate lever. It provides a fifth and a sixth speed range.

Range shift lever must be in neutral position to shift into creeper.

IMPORTANT: To prevent unnecessary clutch wear, never “ride” the clutch by resting a foot on the clutch pedal (C).

Gear (1, 2, or 3) and direction (forward or reverse) shifts can be made on-the-go, without stopping. Release clutch pedal gradually to take up load smoothly.

Range (A, B, C, or D) shift can be made after stopping.

NOTE: Refer to “Gauges and Indicator Lights” in Controls and Instruments section for instrument panel indicators.
