Use PowrReverser Modulation—If Equipped

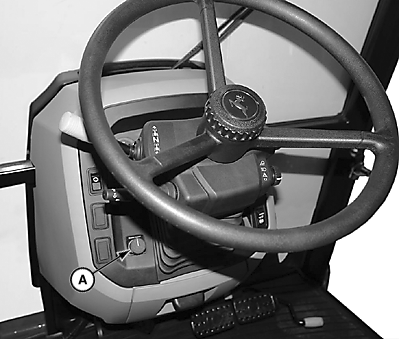

LV14552-UN-03AUG11

A - PowrReverser Modulation

PowrReverser™ Modulation (A) adjusts load take-up and acceleration when making directional changes with PowrReverser lever, during repetitive cycle work such as loader operation:

1. In full left (counterclockwise) position (as shown), load take-up and acceleration ramp-up are slow to respond.

2. When operating with high load and ballast, turn control knob clockwise to increase acceleration ramp-up and load take-up response.

IMPORTANT: Premature tire wear can occur when operating in full right (clockwise) position on concrete or paved surfaces.
