Light Location

OOS Tractor

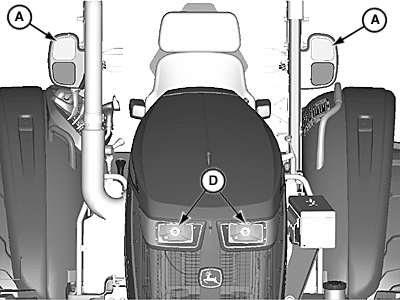

LV14736-UN-28SEP11

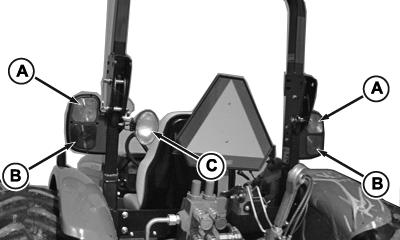

PULV004695-UN-28JAN10

A - Turn/Warning Light

B - Tail Light

C - Rear Field/Work Light

D - Head Light

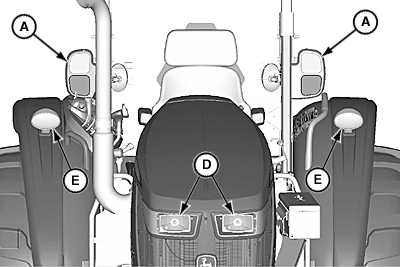

LV14737-UN-25AUG11

Deluxe OOS

PULV002246-UN-06JAN09

Deluxe OOS

A - Turn/Warning Light

B - Tail Light

C - Rear Field/Work Light

D - Head Light

E - Front Field/Work Light

Cab Tractor

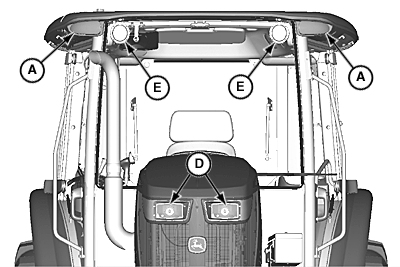

LV14738-UN-25AUG11

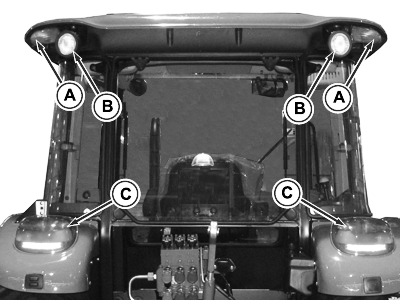

PULV004584-UN-22JUN09

PULV004585-UN-22JUN09

A - Turn/Warning Light

B - Rear Field/Work light

C - Tail Light

D - Head Light

E - Front Field Light

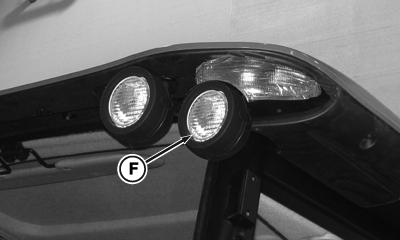

F - Auxiliary Work Light (If Equipped)

Low Profile Tractor

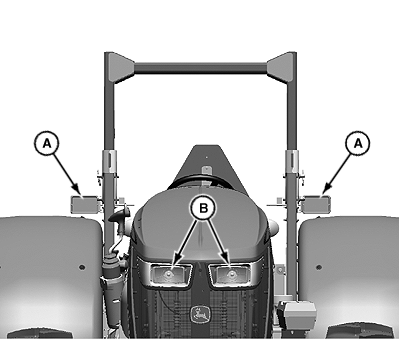

LV15960-UN-09AUG12

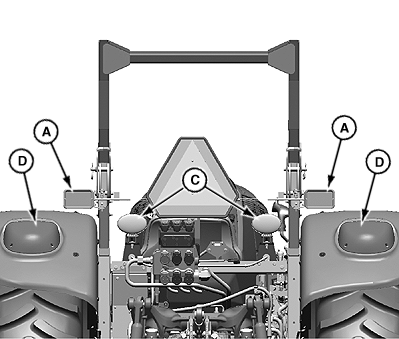

LV15961-UN-13AUG12

A - Warning Light

B - Head Light

C - Rear Field/Work Light

D - Tail/Directional Light
