Keep ROPS Installed Properly

LV14680-UN-24AUG11

LV14679-UN-24AUG11

OOS Shown; Low Profile Similar

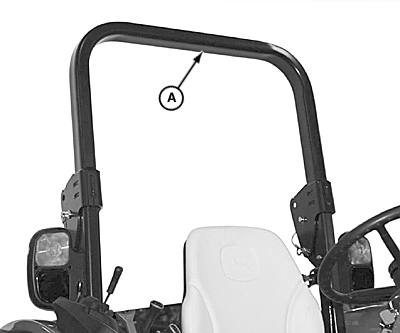

A - ROPS Crossbar

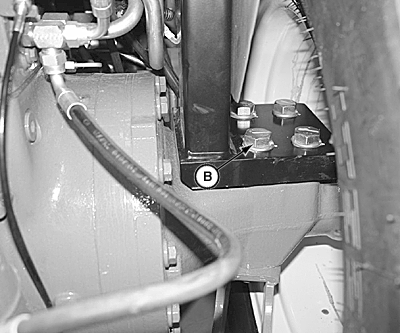

B - Mounting Cap Screws (8 used)

CAUTION: Make certain all parts are installed correctly if roll-over protective structure (ROPS) is loosened or removed for any reason. Replace and tighten mounting cap screws to specification.

The protection offered by ROPS will be impaired if ROPS is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling, or cutting. A damaged ROPS should be replaced, not reused. Any alteration to the ROPS must be approved by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing roll-over protective structure (ROPS) (A), replace and tighten mounting cap screws (B) to specification.

Item	Measurement	Specification
ROPS Mounting Cap Screws	Torque	365 N˙m (284 lb-ft)
