Keep Cab Protection System Installed Properly

LV14681-UN-24AUG11

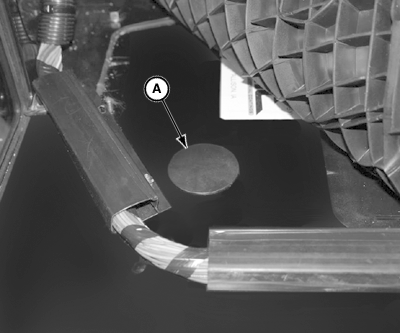

Plug—Front Mount (Left-Hand Side Shown)

A - Plug

CAUTION: Make certain all parts are installed correctly if cab protection system is loosened or removed for any reason. Replace and tighten mounting cap screws to specification.

The protection offered by cab protection system will be impaired if cab protection system is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling, or cutting. A damaged cab protection system should be replaced, not reused. Any alteration to the cab protection system must be approved by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing cab protection system, replace and tighten mounting cap screws to specification.

Lift up rubber floor mat and pry out plugs (A) to access FRONT mounting hardware.

LV14682-UN-24AUG11

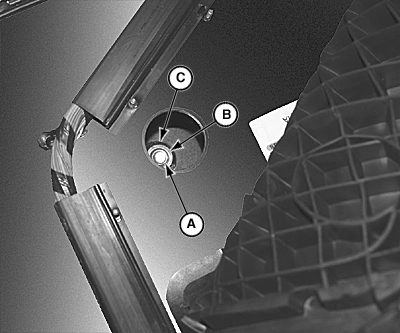

Front Cab Mount

LV14683-UN-24AUG11

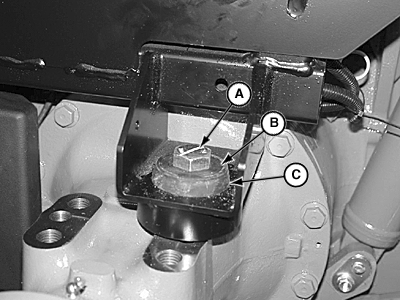

Rear Cab Mount

A - Cap Screw (4 used)

B - Washer (4 used)

C - Isolator (4 used)

Item	Measurement	Specification
Cab Protection System Mounting Cap Screws—Front	Torque	350 N˙m (284 lb-ft)
Cab Protection System Mounting Cap Screws—Rear	Torque	220 N·m (162 lb-ft)
