Change Transmission-Hydraulic Filter

IMPORTANT: Capture oil from filter using a drain pan. Dispose of waste oil properly.

1.
   LV14613-UN-11AUG11


   LV14782-UN-16SEP11


   LV14783-UN-16SEP11

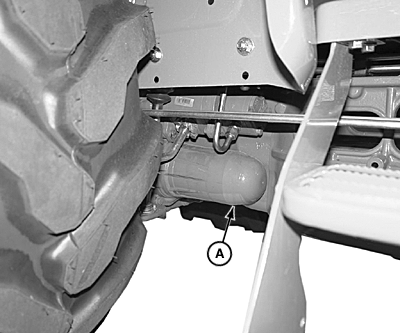

   A - Transmission Oil Filter

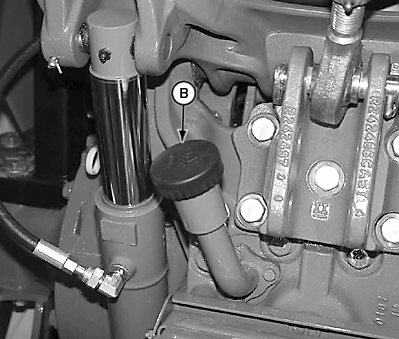

   B - Transmission Oil Filler

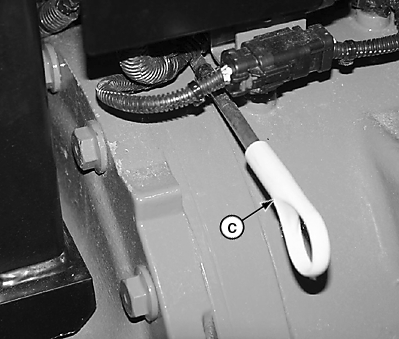

   C - Transmission Oil Dipstick

   PARK tractor on level ground and shut off engine. Remove key.

---




2. Remove transmission oil filler cap and, using a shop-vac, apply suction to the fill port to prevent excessive draining of hydraulic fluid.

3. Remove transmission-hydraulic filter (A) from filter base.

4. Clean threads on filter base and on new filter.

5. IMPORTANT: DO NOT over tighten filter.

   Apply oil to new filter seal and install filter (A). Tighten filter by hand, then tighten an additional 1/8 turn.

6. Check oil level with dipstick (C).

7. IMPORTANT: See Transmission, Steering, Brake, Hydraulic, and Gear Case Oil in “Fuel, Lubricants, and Coolant” section.

   If level is low, remove transmission oil filler cap (B) and add transmission-hydraulic oil as necessary to fill system.

8. Recheck oil level after five minutes of operation.
