Front Console Switches and Controls

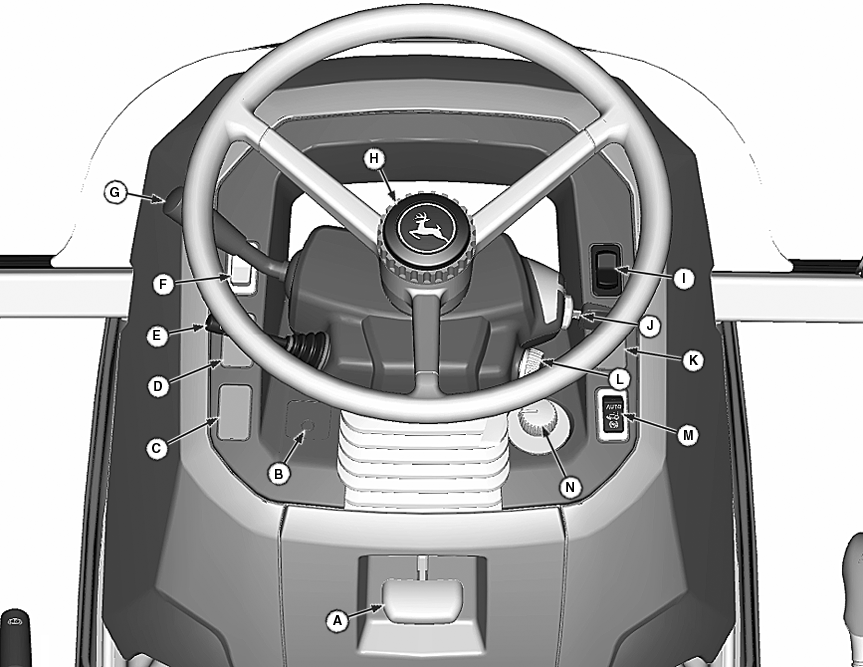

LV14294-UN-17MAY11

Front Console

A - Steering Wheel Tilt Lever

B - PowrReverser™ Modulation Switch (If Equipped)

C - Hazard Light Switch (If Equipped)

D - Loader Light Switch (If Equipped)

E - Turn Signal, HI/LO Lights, and Horn (If Equipped)

F - Roll Mode Switch

G - Forward-Neutral-Reverse Lever (If Equipped)

H - Steering Wheel Telescopic Knob

I - Exhaust Filter Control Switch

J - Key Switch

K - Loader Suspension Switch (If Equipped)

L - Headlight/Hazard Switch

M - MFWD Switch

N - Wiper Switch (Cab Only)

NOTE: Cab controls shown. Open Operator's Station controls similar.
