Operate PTO

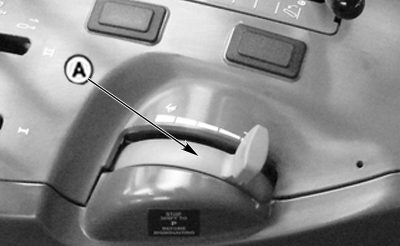

PULV000077-UN-01OCT07

Cab Shown; OOS Similar

PULV004678-UN-16DEC09

Low Profile

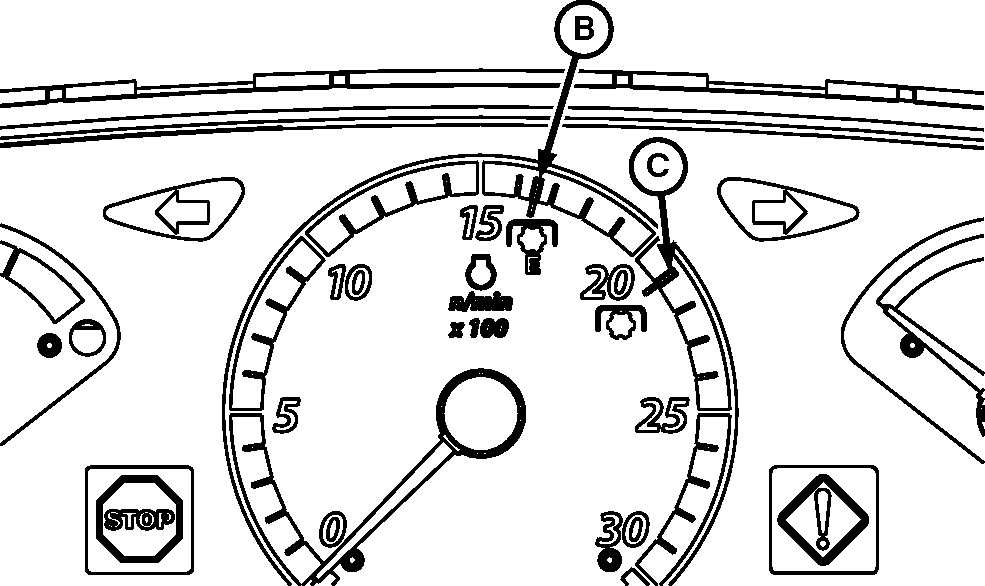

LV14399-UN-02JUN11

A - Hand Throttle

B - 540E Operation Speed

C - 540 Operation Speed

NOTE: Engine will start with PTO switch up (engaged), but PTO shaft will not rotate until switch is reset.

1. Depress clutch pedal, start engine, and push hand throttle lever (A) forward until tachometer indicates PTO rated speed:

   PTO Rated Speed
   PTO	Engine RPM Speed
   540	2100
   540E	1645
   1000	2100

   NOTE: When in 540E position, engine speed is limited to a maximum of 1815 rpm. 540E operation will not engage if engine speed is above 1815 rpm.

2. NOTE: PTO is engaged or disengaged without depressing clutch pedal.


   LV14630-UN-11AUG11

   OOS


   PULV004676-UN-16DEC09

   Low Profile


   LV14629-UN-11AUG11

   Cab

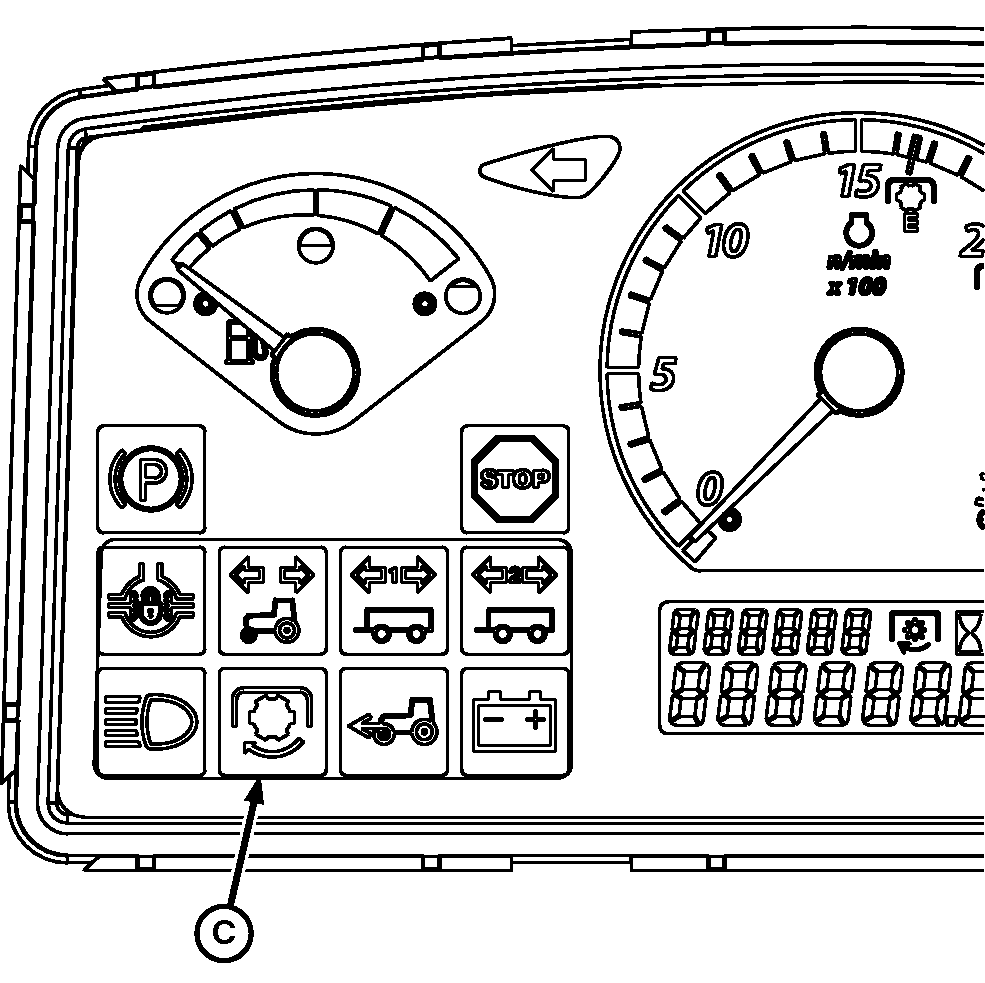

   LV14400-UN-02JUN11

   A - 540/540E PTO Speed Shift Lever

   B - PTO Engagement Switch

   C - PTO Indicator

   Engage PTO:

   Lift switch (B) up to engage PTO.

   PTO indicator (C) will light when PTO is engaged.

   IMPORTANT: A warning alarm will sound if operator leaves seat with PTO engaged.

   NOTE: If engine is stopped while PTO is engaged, restart engine, depress and lift switch knob (B) to reset and engage PTO.

   IMPORTANT: Do not use PTO speed shift lever to engage or disengage PTO.

---




3. Disengage PTO:


   LV14630-UN-11AUG11

   OOS


   PULV004676-UN-16DEC09

   Low Profile


   LV14629-UN-11AUG11

   Cab


   LV14400-UN-02JUN11

   A - 540/540E PTO Speed Shift Lever

   B - PTO Engagement Switch

   C - PTO Indicator

   Push switch knob (B) down to disengage PTO.

   PTO brake automatically engages when PTO is disengaged.

   PTO indicator (C) is off when PTO is disengaged.

   IMPORTANT: Do not use PTO speed shift lever to engage or disengage PTO.

---
