Rotary Beacon Light—If Equipped

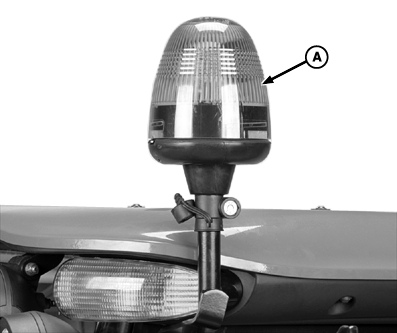

LV9687
LV9687-UN-19AUG04

Cab

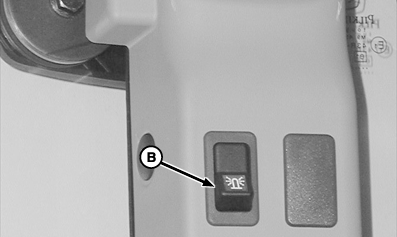

LV9688
LV9688-UN-19AUG04

Cab

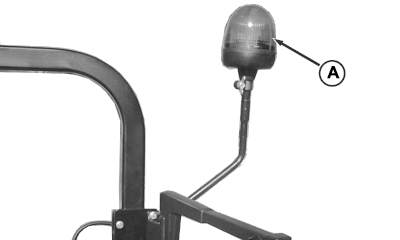

PULV004524
PULV004524-UN-03JUN09

OOS

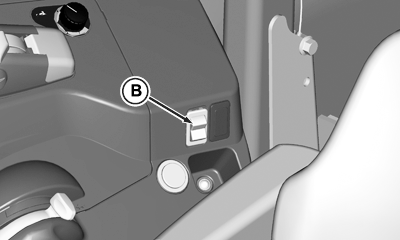

PULV004551
PULV004551-UN-15JUN09

OOS

A - Beacon Light

B - Switch

Depress switch (B) to activate beacon light (A).

To remove light for storage or clearance:

  1. Loosen wing nut and lift light from tube.

  2. Install cap on tube end to protect light socket.

    NOTE: Rotary beacon light is also available for OOS.

SH20560,000006F-19-20090618
