Operate Manual Lower for Electrohydraulic Hitch—If Equipped

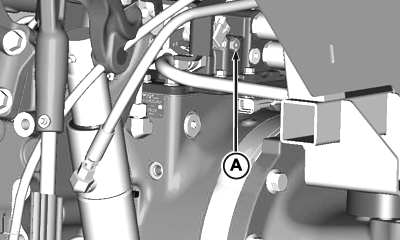

PULV004560-UN-15JUN09

A - Protective Cap

CAUTION: Perform procedure from operator's station to avoid possible injury from rear hitch mounted implements.

If engine or electrical power is not available, hitch can be lowered manually.

Remove protective cap (A) to access set screw.

Turn set screw COUNTERCLOCKWISE to lower hitch.

With hitch lowered, turn set screw CLOCKWISE and install cap.
