Observe Drawbar Load Limitations

PULV004940-UN-19JUN09

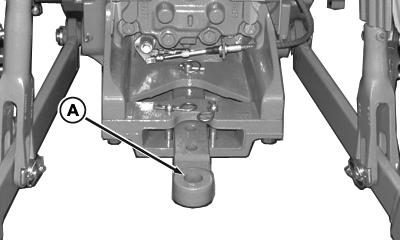

Fully Retracted

PULV004941-UN-19JUN09

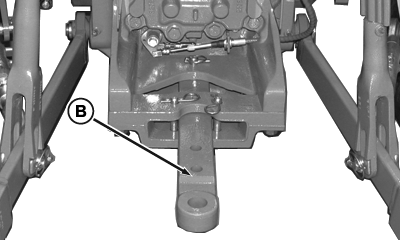

Fully Extended

A - Drawbar—Fully Retracted

B - Drawbar—Fully Extended

IMPORTANT: Some heavy implements, such as a loaded single-axle trailer, can put excessive strain on drawbar. Strain is greatly increased by speed and rough terrain. Do not exceed maximum static vertical load on drawbar.

Drive slowly with heavy loads.

Static Drawbar Vertical Load (kg (lb))
Position	Retracted	PTO 540/1000 rpm
Standard	1250 (2756)	1000 (2205)
Heavy Duty	1450 (3197)	1200 (2646)
