Satellite Service for Premium Radio—US and Canada Only

RXA0100813
RXA0100813-UN-06MAY09

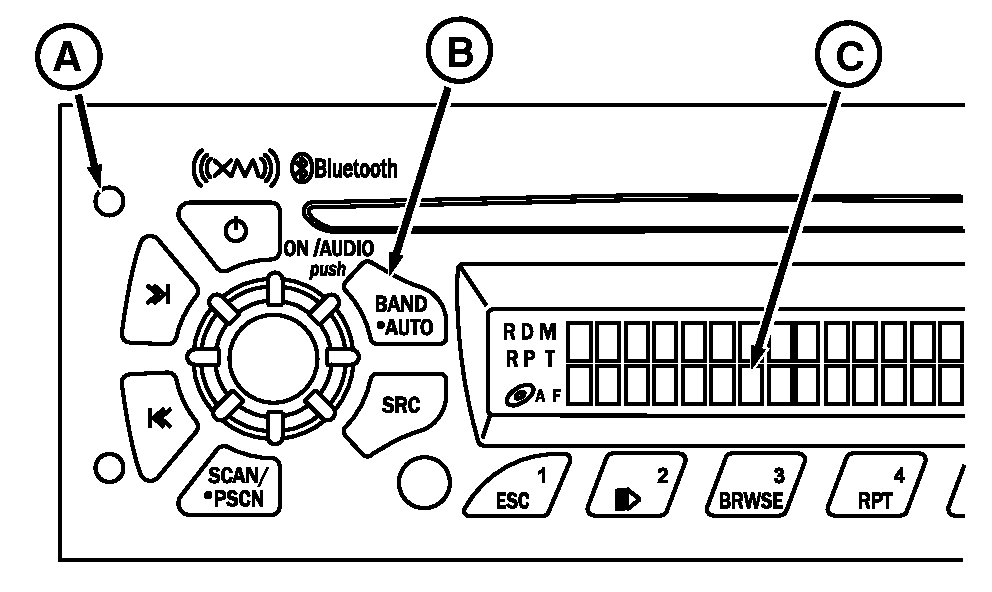

Radio With CD Player

A - SAT Radio

B - Band Button

C - Display

When the XM® logo (A) appears above Audio knob on radio, it is satellite radio compatible. XM® satellite radio services offer more than 100 channels of digital quality audio programming, which can be heard uninterrupted across the United States and Canada.

A service fee is required to receive satellite broadcasts. For more information, contact XM® at www.xmradio.com or by phone at 1-800-852-XMXM (9696).

To activate integrated or external satellite radio:

Furnish satellite radio provider with the satellite radio’s Electronic Serial Number. To find the electronic serial number, complete the instructions that follow.

If satellite radio provider is XM® Satellite Radio:

  1. With ignition and radio ON, press BAND button (B) and select XM1, XM2, or XM3.
  2. Tune radio to channel 0, and the 8-digit serial number will appear on display (C).

XM is a trademark of SIRIUS XM Radio Inc.

JZ81662,0000348-19-20110805
