SCV Control Lever and Coupler Identification

PY15219-UN-01JUN12

SCV Control Levers For CAB

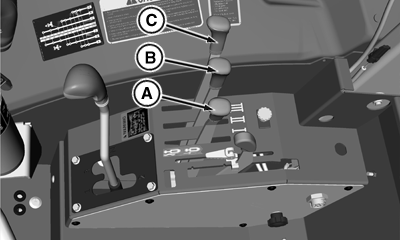

PY16646-UN-16AUG12

SCV Control Levers For OOS

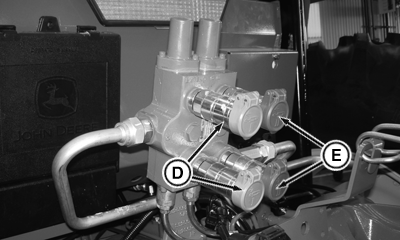

PY15220-UN-01JUN12

Two-Function Valve

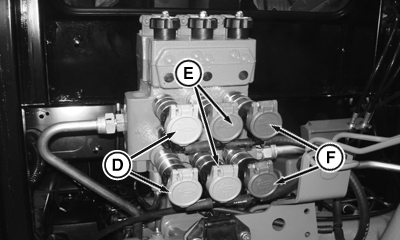

PY15221-UN-01JUN12

Three-Function Deluxe Valve (If Equipped)

A - SCV I Lever (Green)

B - SCV II Lever (Blue)

C - SCV III Lever (Brown) (if Equipped)

D - SCV I Couplers (Green Cover)

E - SCV II Couplers (Blue Cover)

F - SCV III Couplers (Brown Cover) (if Equipped)

SCV levers control oil flow to hydraulic hose couplers at the rear of the tractor.

SCV I Lever (A) operates couplers (D).

SCV II Lever (B) operates couplers (E).

SCV III Lever (C) operates couplers (F).
