Change Engine Oil and Filter

SERVICE INTERVAL
	Initial — 100 Hours
	Regular — 250 Hours*
	Regular — 500 Hours
	* 250 hours If PLUS 50 oil and a John Deere filter are not used, lower this service interval to 250 hours.

PY15547-UN-04JUL12

PY15545-UN-04JUL12

PY15546-UN-04JUL12

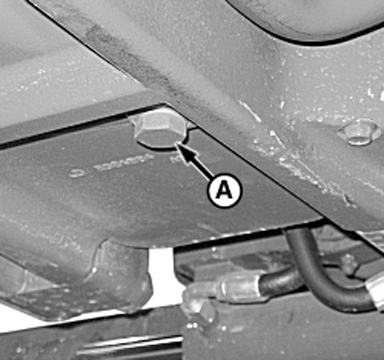

A - Drain Plug

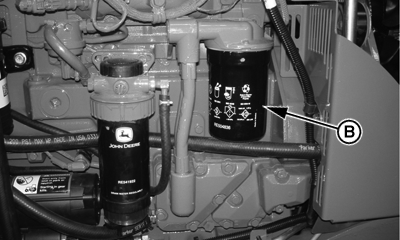

B - Engine Oil Filter

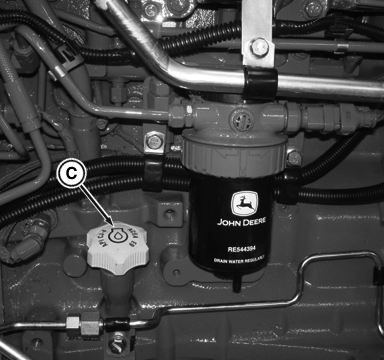

C - Engine Oil Filler Cap/Dipstic

IMPORTANT: New engines are filled, at the factory, with John Deere Break-In Plus™ Engine Oil. (See Fuels, Lubricants, and Coolants section for oil specifications.)

If the engine has too much operating time at idle, constant speeds, and/or light load usage, or make-up oil is required during the first 100-hour period, a longer break-in period may be needed without changing Break-In Plus oil until 500 hours.

If diesel fuel has a high sulfur content, refer to Diesel Engine Oil in Fuels, Lubricants, and Coolants section.

1. Operate engine to warm oil.

2. Park tractor on level ground and SHUT OFF engine. Remove key.

3. Remove oil drain plug (A) and drain oil.

4. Open hood.

5. Remove engine oil filter (B).

   NOTE: Make sure old filter gasket is completely removed from housing before installing new filter.

6. Apply a film of oil on new oil filter gasket and install new filter. Hand-tighten plus 1/2 turn.

7. Install drain plug (A).

8. Add oil to filler (C). (See Diesel Engine Oil in Fuels, Lubricants, and Coolants section.)

   Item	Measurement	Specification
   Engine Crankcase Oil	Capacity	15 L (3.9 U.S.gal)

9. Start engine and inspect drain plug (A) and filter (B) for leaks..

10. Stop engine and remove key.

11. NOTE: If oil leaks in excess see your John Deere dealer.

12. Recheck oil level, add if necessary.

13. Lower hood.
