Before Start the Engine

CAUTION:

TS220
TS220-UN-15APR13

Prevent asphyxiation by providing adequate ventilation. If operating indoors, use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to ventilate the area thoroughly.

  1. Check fuel gauge.

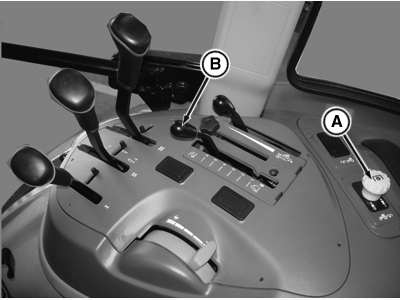

  2. PY15538
    PY15538-UN-28JUN12

    PTO and Gear Shift Lever, Cab

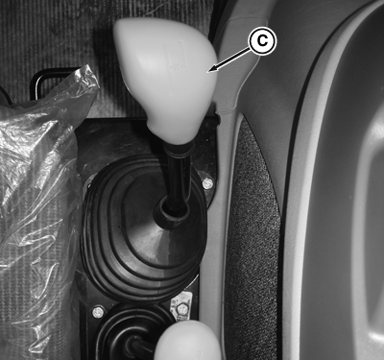

    PY15539
    PY15539-UN-29JUN12

    Gear Shift Lever, Cab

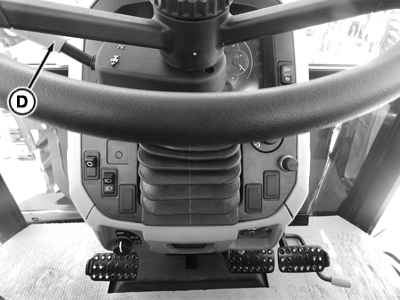

    PY13338
    PY13338-UN-07MAY15

    PowrReverser Lever, Cab

    A - PTO Switch

    B - Hitch Control Lever

    C - Gear Shift Lever

    D - PowrReverser Lever (if equipped)

    Transmission Controls: Put gear shift lever (C) in NEUTRAL.


  3. PR: Put lever (D) in NEUTRAL.

  4. PTO: Press switch (A) back to disengaged position (shown).

  5. Rockshaft: Push hitch control lever (B) forward.

  6. Turn key to RUN position.

    • All indicator bulbs light momentarily
    • Check fuel level gauge to be sure tractor has plenty of fuel
    • Charging system (battery) and Neutral (N) indicators stay on
    • Numbers display in hour meter window
    • An audible “beep” will sound briefly

    If any indicator does not function properly, see your John Deere dealer.

CP00834,0001E20-19-20160503
