Stop the Engine

  1. IMPORTANT: Certain engine parts are cooled by engine oil. Stopping a hot engine could cause damage by overheating or lack of lubrication. Before stopping engine that has been operating at working load, idle engine at least 1 or 2 minutes at 1000—1200 RPM to cool hot engine parts. If an Exhaust Filter Cleaning has just been performed, increase engine idle time to 4 minutes.

    If service work is going to be performed on the Exhaust Filter, increase engine idle time to 10 minutes.

    Pull hand throttle (E) down to slow idle position.

  2. Put gear shift lever (A) or PowrReverser lever (B) in NEUTRAL.

  3. Lock brake pedals together using bar (C).

  4. Push brake pedals down and pull up on lever (D) to set parking brake.

  5. Lower all equipment to the ground, put all SCV levers in NEUTRAL and disengage PTO.

  6. Allow engine to idle for one to two minutes.

  7. CAUTION: Remove key from ignition switch to prevent operation by untrained personnel.

    Turn key to STOP and remove from switch.

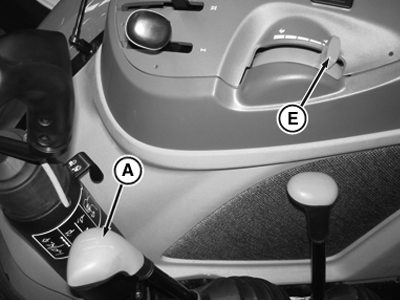

PY15553
PY15553-UN-04JUL12

Cab

PY21081
PY21081-UN-08MAY15

Cab

PY16313
PY16313-UN-13AUG12

A - Gear Shift Lever

B - PowrReverser Lever

C - Brake Pedals Locking Bar

D - Parking Brake Lever

E - Hand Throttle Lever

CP00834,0001E25-19-20160503
