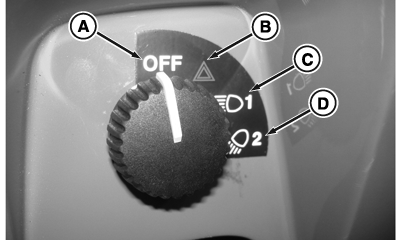

Light Switch

PY14591-UN-07AUG12

PY14590-UN-30MAY12

(If Equipped)

A - OFF

B - Warning Light Position

C - Road Lights Position

D - Field Light Position

E - High/Low Beam Switch

B—Warning Light : Warning lights flash, instrument panel illuminates, turn signal arrows on instrument panel flash and courtesy light (cab) is on. This position is for driving on roads during daytime.

C—Road lights (Position 1) : Head lights and tail lights (red) on, warning lights flash, instrument panel illuminates, turn signal arrows on instrument panel flash and courtesy light (cab) is on. This position is for driving on roads during daytime or nighttime.

D—Field lights (Position 2) : Head lights and tail lights (red) on, work lights on, instrument panel illuminates and courtesy light (cab) is on. This position is for field use only.

CAUTION: Never use work lights when driving on roads. Dim headlights for oncoming traffic. Bright lights could blind or confuse other drivers.

E—High/Low beam switch : Active when light switch is in positions (C or D).

• Switch DOWN—Low/dim headlights on
• Switch UP—High/bright headlights on. High beam indicator on instrument panel also illuminates.

Dim headlights when approaching other vehicles, bright lights may blind or confuse other drivers.

Light Switch Operation
Position	Tail Lights	Head Lights	Work Lights	Warning Lights
OFF	OFF	OFF	OFF	OFF
Triangle (Warning)	OFF	OFF	OFF	FLASH
1 (Road)	ON	ON	OFF	FLASH
2 (Field)	ON	ON	ON	OFF
