Use Headlights

PY21069-UN-07MAY15

PY14593-UN-07AUG12

PY14594-UN-30MAY12

Cab

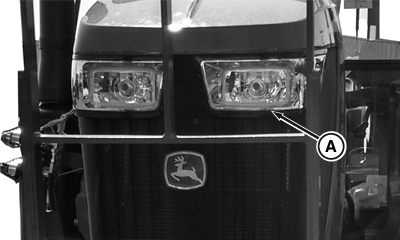

A - Headlights

B - Road Lights Position

C - Field Lights Position

D - High/Low Beam Switch

CAUTION: Never use work lights when driving on roads. Dim headlights for oncoming traffic. Bright lights could blind or confuse other drivers.

Dual-beam headlights (A) are used for highway driving, day or night. They are turned on in road lights position (B) or field lights position (C) with the light switch.

Always dim headlights by moving high/low beam switch (D) to low beam position when meeting another vehicle.

Keep headlights adjusted properly. (See Adjust Headlights in Electrical and Lighting Maintenance section.)
