Use Warning Lights

PY21070-UN-07MAY15

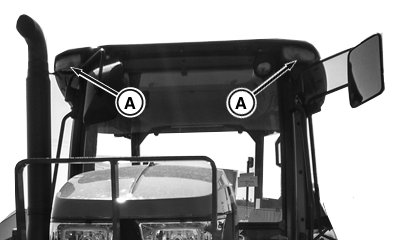

Front Lights, Cab

PY14605-UN-04JUN12

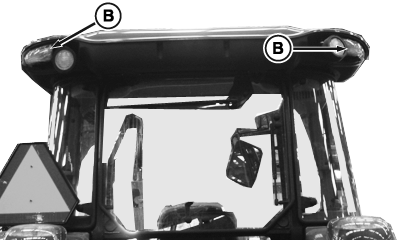

Rear Lights, Cab

PY16308-UN-08AUG12

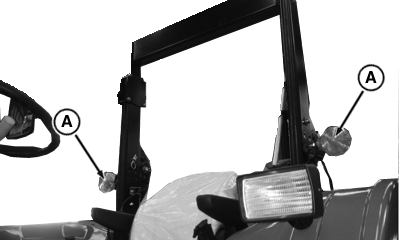

Front Lights, OOS

PY13409-UN-20JUL15

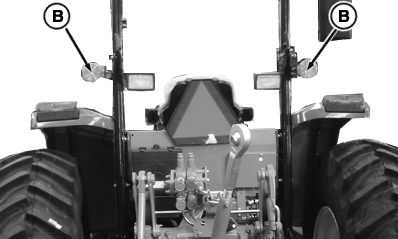

Rear Lights, OOS

PY14606-UN-04JUN12

A - Front Warning Lights

B - Rear Warning Lights

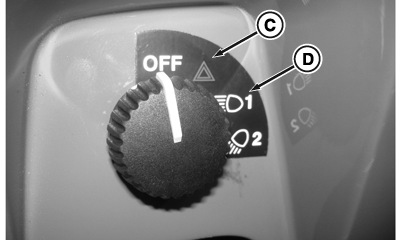

C - Warning Lights Position

D - Road Lights Position

CAUTION: Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from the rear, especially in turns, and use hand signals or turn signal lights.

Use headlights, warning lights, and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible and in good working order. Replace or repair lighting and marking that has been damaged or lost. An implement safety lighting kit is available from your John Deere dealer.

Warning lights (A and B) flash when switch is turned to warning light position (C). They also flash when switch is in road lights position (D).
