Use Turn Signals

PY21071-UN-07MAY15

Cab

PY13410-UN-20JUL15

OOS

PY16309-UN-04SEP12

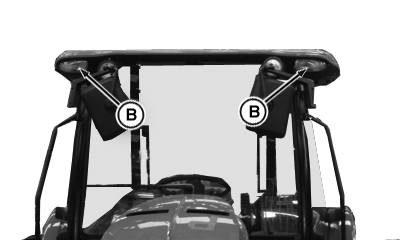

Front Turn Signal Lights, Cab

PY13411-UN-20JUL15

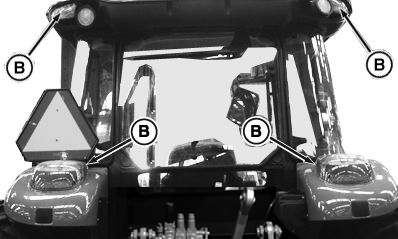

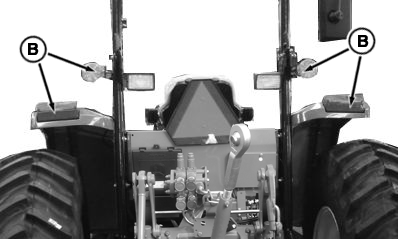

Rear Turn Signal Lights, Cab

PY13360-UN-08MAY15

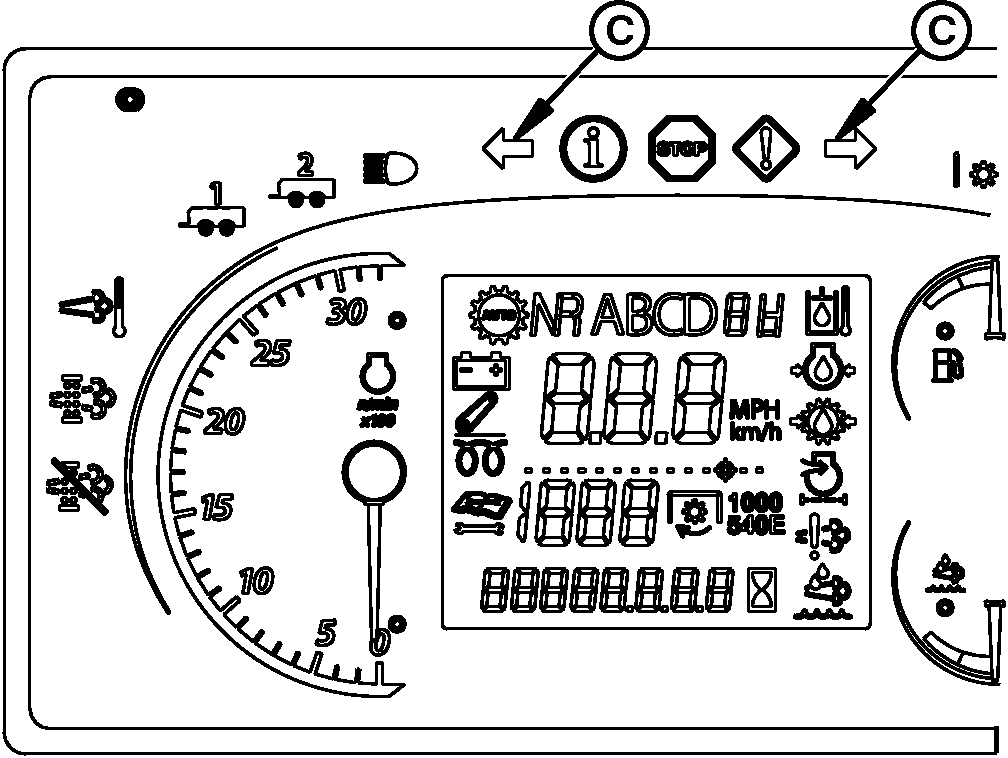

Instrument Cluster

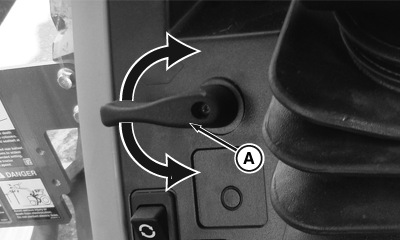

A - Turn Signal Lever

B - Turn Signal Lights

C - Directional Arrows

With key in RUN position, move turn signal lever (A):

• DOWN—Left-hand turn
• UP—Right-hand turn

NOTE: Make sure to manually return lever to CENTER position after turning.
