Accessory Electrical Outlets

CPA0002708-UN-03MAY16

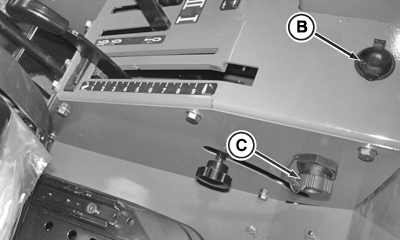

Right Hand Panel, OOS

PY15528-UN-22JUN12

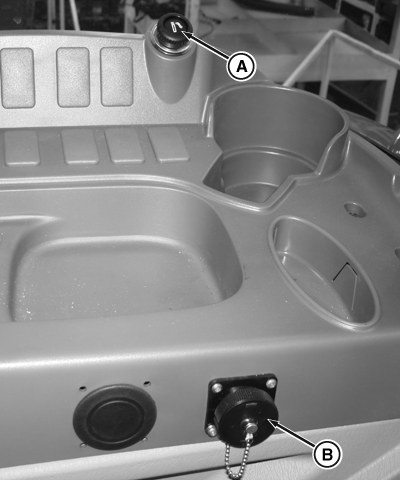

Right Hand Panel, Cab

PY15527-UN-22JUN12

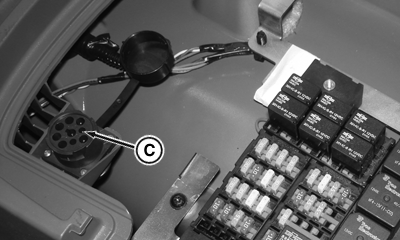

Left Hand Panel, Cab

A - Cigarette Lighter (Cab only)

B - 12-Volt Electric Outlet

C - Service ADVISOR Outlet (Tractors with electronic controllers)

NOTE: Outlets are protected by two 30-amp fuses.
