Use Seven-Terminal Outlet

PY13394-UN-23JUN15

PY22172-UN-24MAR15

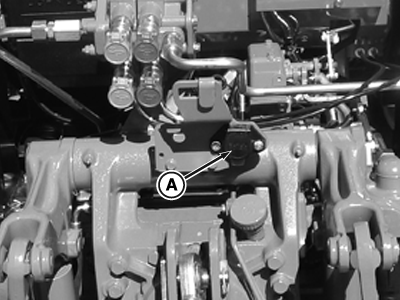

A - Seven-Terminal Outlet

Outlet (A) is used to connect lights, turn signals and remote electrical equipment on trailers or implements. Always use auxiliary lighting on towed implements when tractor rear signals and other lights are not clearly visible from behind.

NOTE: Matching plug is available through your John Deere dealer.

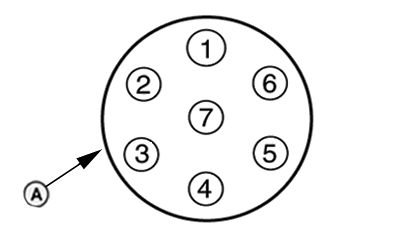

Terminal	Function
1	Ground
2	Work Light
3	Left Turn
4	Brake Light
5	Right Turn
6	Tail Light
7	Auxiliary
