Use Work Lights

PY21080-UN-07MAY15

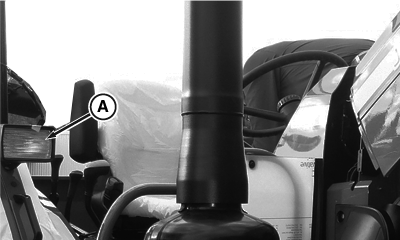

Front Worklights, OOS

PY21072-UN-07MAY15

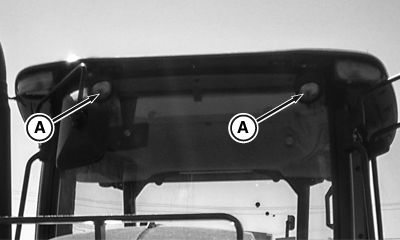

Front Worklights, Cab

CPA0002707-UN-03MAY16

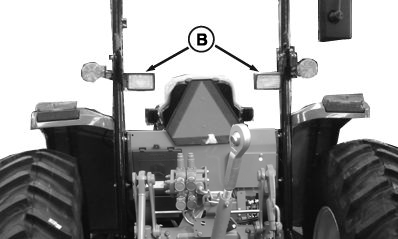

Rear Worklights, OOS

PY14599-UN-04JUN12

PY14591-UN-07AUG12

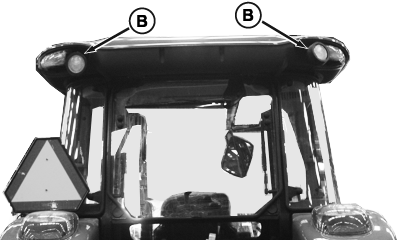

Cab

PY14600-UN-04JUN12

A - Front Work Lights

B - Rear Work Lights

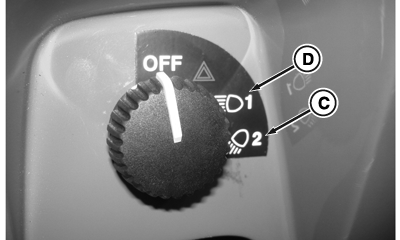

C - Field Lights Position

D - Road Lights Position

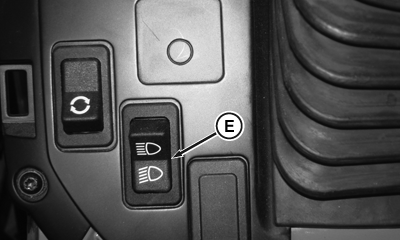

E - High/Low Beam Switch

CAUTION: When operating on a road, move light switch to road lights position (D) and use switch (E) on either bright or dim headlight positions. Never use work lights when transporting on roads. Clear, bright lights at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

NOTE: Front and rear work lights adjust freely by hand.

Work lights (A and B) are for field work only. Do NOT use when driving on public roads. Work lights are on when switch is turned to field light position (C).
