Shift Transmission

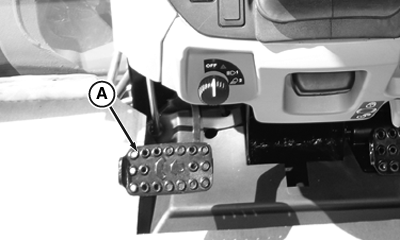

PY20024-UN-11FEB14

Cab Shown

A - Clutch Pedal

NOTE: This is normally done when engaging a speed gear from neutral with clutch pedal (A) fully depressed. When the tractor is started with speed gear engaged (FNR is in neutral), the tractor will not move when the PowrReverser lever is set to F or R.

IMPORTANT: To prevent transmission damage, do not attempt to change range while in motion. To shift into a different range; stop tractor when shifting up from A to B, and when shifting down from C to B or B to A, depress clutch pedal fully and decrease engine speed.

The clutch pedal must be depressed in order to make a gear (speed) shift. If the clutch pedal is not fully depressed, the shift lever can not be moved beyond neutral. Should this occur, depress the clutch pedal further.

To prevent unnecessary clutch wear, never “ride” the clutch by resting foot on the pedal.

PR: With tractor stopped, select desired travel direction (forward or reverse). Travel direction change can be done without depressing the clutch pedal.

Range Shift: Tractor must come to a complete stop when shifting up from A to B, and when shifting down from C to B or B to A.

1. After the tractor has stopped, lower engine rpm to idle speed.
2. Fully Depress clutch pedal.
3. Select desired speed range (A, B, C, D).
4. Slowly release clutch pedal to gradually take up load.
5. Increase engine speed once shift is completed.

Gear (speed) Shift: Changing gears can be made on-the-go, without stopping.

1. With tractor in motion, depress clutch pedal (A) fully.
2. Select desired speed (1, 2, 3).
3. Slowly release clutch pedal to gradually take up load.
