Use Infinitely Variable Shuttle

PY15192-UN-01JUN12

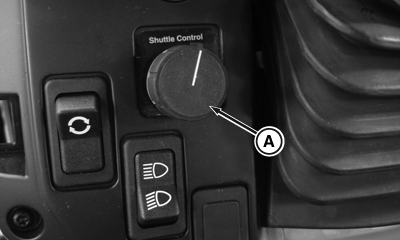

A - Infinitely Variable Shuttle

Infinitely variable shuttle (A) adjusts load take-up and acceleration when making directional changes with PowrReverser lever during repetitive cycle work (loader operation).

In full left (counterclockwise) position (shown) load take-up and acceleration ramp-up are slow to respond.

When operating with high load and ballast, turn control knob clockwise to speed-up acceleration and load take-up response.

IMPORTANT: When operating in full right (clockwise) position on concrete or paved surfaces, premature tire wear can occur.
