Use Rockshaft Position Control

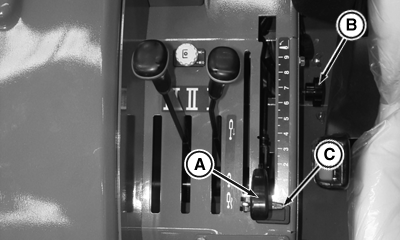

PY16310-UN-09AUG12

Control Levers of OOS

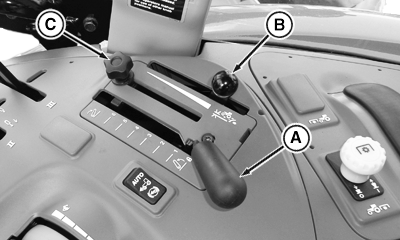

PY20021-UN-12FEB14

Control Levers of CAB

A - Position Control Lever

B - Draft Control Lever (If Equipped)

C - Position Control Lever Stop

CAUTION: To prevent unexpected movement, put draft control lever (B) in full forward position before attaching implement.

Rear hitch position lever (A) controls 3-point hitch mounted implement raise or lower movement and ground depth penetration.

IMPORTANT: Draft control setting automatically influences actual hitch position. For independent position control, move draft control lever (B) in full forward position.

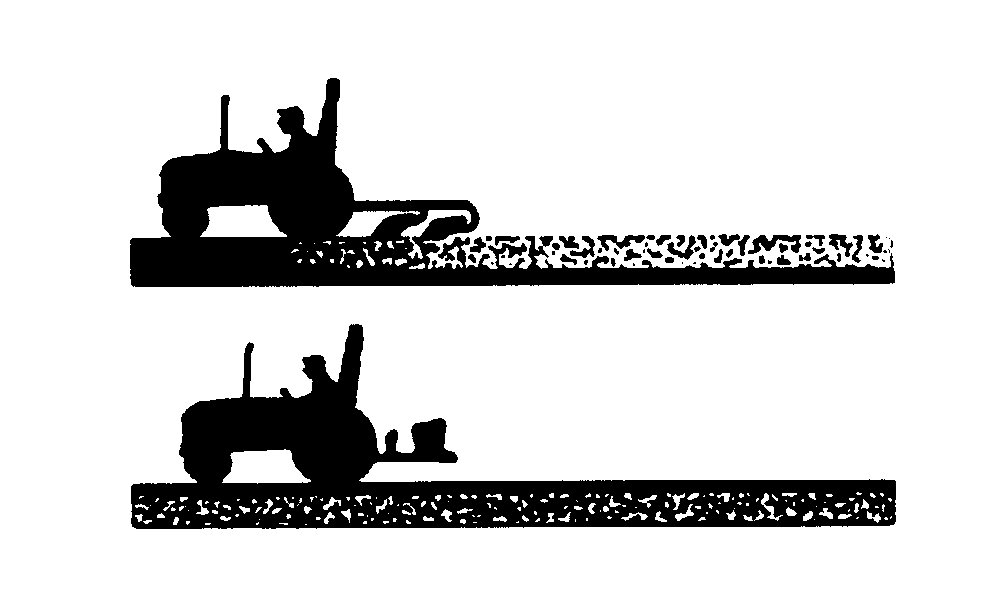

LV09233-UN-26JUL04

Depth Control

NOTE: A few minutes of implement operation may be required to determine the best depth. Set desired depth with stop. Hitch returns implement to previous above or below ground depth.

Depth Control (level, in-ground, on-ground, and non-ground engaged situations): Position lever (A) at desired depth.

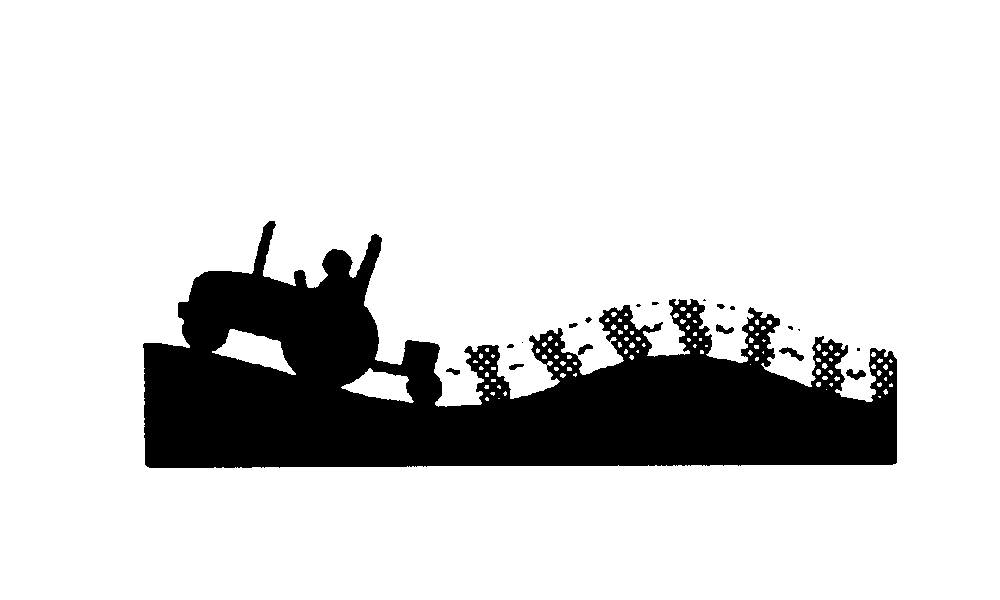

LV9457-UN-26JUL04

NOTE: Ensure implement skids or height gauge wheels are set correctly to carry full implement weight. Ensure hitch draft link arms are adjusted for any required lateral float.

Height at Turn (end of field turn around situations): Position lever (A) rearward until implement is out of ground.

Implement Transport (load and non-load sense usage): Position lever (A) fully rearward.
