Set Position Control Lever Stop

  1. NOTE: Position control lever stop is used when operating depth or height needs to be repeated often.

    PY15226
    PY15226-UN-31MAY12

    PY15225
    PY15225-UN-31MAY12

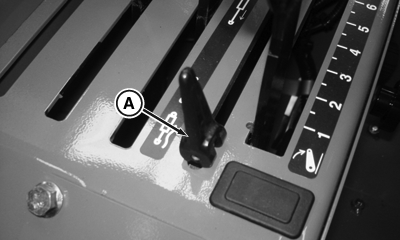

    A - Lever Stop

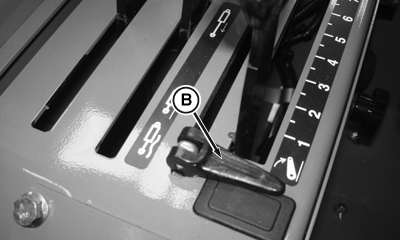

    B - Lever Stop in Down Position

    Operate implement for a few minutes to determine proper depth or height.


  2. Raise lever stop (A), and slide against position control lever. Lock stop in position by pressing lever down (B). Rockshaft will now lower to same position each time control lever is pushed forward to the stop.

CP00834,0001E4F-19-20160504
