Adjust Rockshaft Speed-of-Drop

CAUTION: Excessive rate-of-drop may cause damage to equipment or injury to machine operator. Fully lowering implement should require at least two seconds.

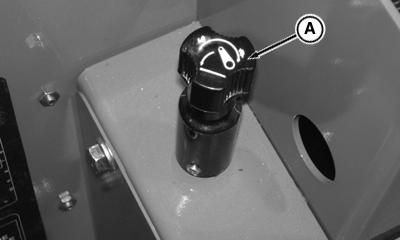

PY15228-UN-31MAY12

Floor Behind Seat

A - Rockshaft Speed-of-Drop Knob

Rockshaft drops faster when a heavy implement is attached. Adjust speed-of-drop knob (A) so that it is slow enough to be safe and prevent implement damage.

Adjust rockshaft speed-of-drop. Turn knob:

• Clockwise—Slow speed-of-drop
• Counterclockwise—Fast speed-of-drop
