Adjust Hitch Side Sway

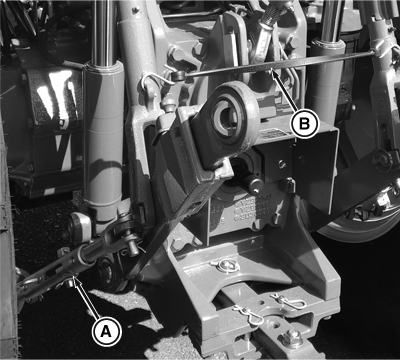

PY21084-UN-08MAY15

A - Sway Rod

B - Strap

NOTE: Check implement operator's manual for instructions on whether to allow side sway.

Use sway rod (A) to take up chain slack as needed.

IMPORTANT: Do not shorten the rod so short it does not allow hitch to be raised completely. If rod prevents hitch from rising, hydraulic relief valve will open, causing excessive oil heating and pump or equipment damage.

NOTE: Use spring or rubber strap (B) to keep draft links clear of rear tires when draft links are not attached to implement.
