Adjust Drawbar Length

IMPORTANT: When installing/adjusting Standard Duty Drawbar, always make sure the slots face downwards (as shown)

PY15247-UN-15JUN12

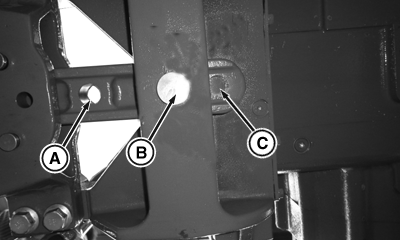

Length Positions (Standard Drawbar)

A - Hole, RETRACTED (short) Drawbar Position

B - Retaining Pin

C - Hole, EXTENDED Drawbar Position

Hole (A): SHORT position

Hole (C): EXTENDED position

1. Loosen and remove drawbar retaining pin (B).

2. Slide drawbar forward or rearward to desired position.

3. Align holes and install retaining pin.
