Warm Transmission-Hydraulic System Oil

CAUTION: Overheated hydraulic oil can cause personal injury and component malfunctions. To prevent hydraulic oil from overheating, DO NOT hold SCV or multi-function lever (if equipped) in operating position for an extended period of time.

PY15218
PY15218-UN-10SEP12

LV22138
LV22138-UN-17JUN14

LV22139
LV22139-UN-17JUN14

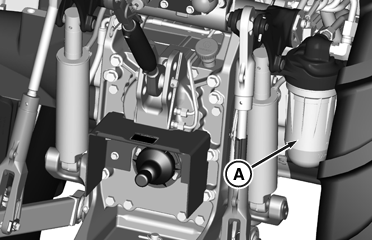

A - Hydraulic Oil Filter

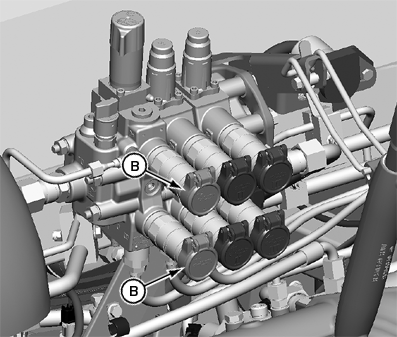

B - SCV I Couplers

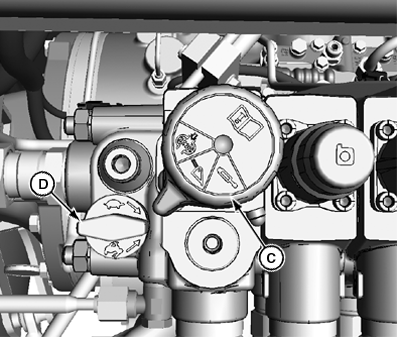

C - Automatic Detent Position

D - Flow Control Knob

Hydraulic system may be slow to function when tractor is started in cold weather. Cold oil will not flow easily through the hydraulic system filter (A).

Steering may be slow until system warms up.

Hydraulic system will function normally when oil warms up.

  1. IMPORTANT: To prevent damaging hydraulic pump or relief valve, DO NOT exceed 2—3 minutes warm-up time with steering wheel held in full left or full right turn position or by using the SCV levers. Perform oil warm-up operation at rear or mid SCV.

    Connect jumper hose to SCV I couplers (B)

  2. Turn SCV I selector knob to cylinder (automatic) detent position (C)

  3. Turn flow control knob (D) fully counterclockwise (Open)

  4. RXA0146166
    RXA0146166-UN-03NOV14

    Cab

    Depress clutch pedal, start engine and idle at 1200 rpm.

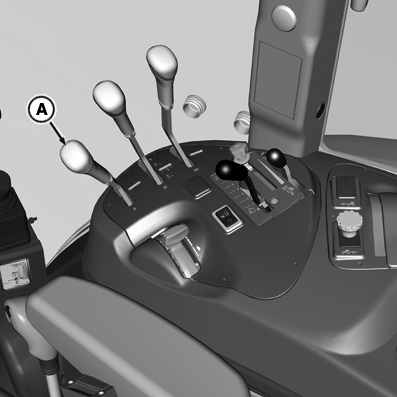

  5. Move SCV I multi-function lever (A) forward or rearward until hydraulic oil warms to operating temperature.

    NOTE: If equipped with dual rear SCV and for any mid SCV, multi-function lever must be held into extend or retract.

  6. To check warm-up progress, turn steering wheel side-to-side. When wheel turns smoothly without hesitation, oil has warmed to operating temperature. After transmission-hydraulic oil has warmed to operating temperature.

  7. Return SCV I multi-function lever to neutral.

  8. Return detent selector and flow control knobs to original positions and setting.

  9. Remove jumper hose.
