Use Hydraulic Motor Case Drain Connection

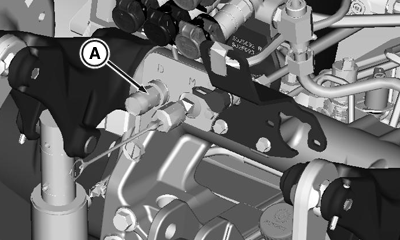

PY15513-UN-21JUN12

A - Flat-Faced Drain Connector

Some implement motors have a case drain line used to bleed oil off the motor case and protect the shaft seal.

If implement motor is equipped with a case drain hose, attach it to flat-faced drain connector (A). Make sure hose coupler and drain connector are clean before attaching.

Install protective dust cap when connector is not in use.

Parts for this attachment are available from your John Deere dealer.
