Use Hydraulic Motor Return Connection

PY15514-UN-21JUN12

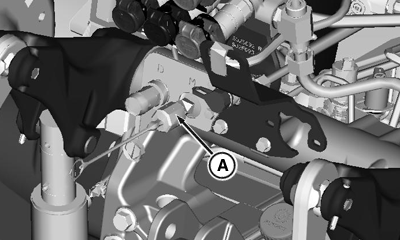

A - Motor Return Connector Cap

Some implements, such as a post pounder, require use of a high flow or fast return-to-sump connection.

If a high flow return connection is needed, remove cap (A) on valve stack housing and attach hose fitting to connector.

Motor return parts are available from your John Deere dealer.
