Mid-Mount SCV Control Lever and Coupler Identification

LV14586-UN-10AUG11

A - multi-function lever

Lever (A) controls oil flow to corresponding selective control valve (SCV) couplers, located at the right side of tractor.

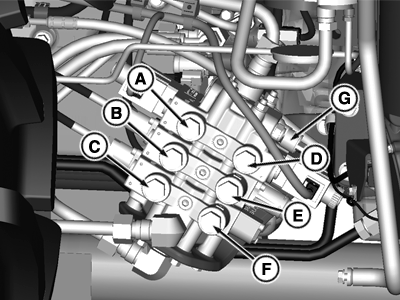

PY13312-UN-21APR15

A - Third-Function Cylinders, Rod End (Grapple Open) - GREEN

B - Boom Cylinders, Head End (Raise) - BLUE

C - Bucket Cylinders, Rod End (Curl/Rollback) - BLACK

D - Third-Function Cylinders, Head End (Grapple Close) - ORANGE

E - Boom Cylinders, Rod End (Lower) - RED

F - Bucket Cylinders, Head End (Dump) - YELLOW

G - Adjustable Flow Control

Top couplers are for extension; Bottom couplers are for retraction.
