Adjust Flow Control—Three-Function Deluxe Inlet Section

CAUTION:

PY21079-UN-09JUL15

SCV (Rear)

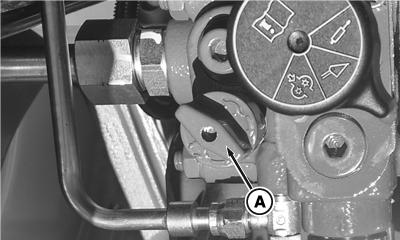

A - Flow Control Knob

Decrease flow rate if hydraulic oil overheats, remote cylinder moves too quickly or if hydraulic motor turns too fast.

Flow control adjustment only affects the number I section of rear SCV and the electro-hydraulic (grapple) section of the mid-mount control valve. Other valve sections are not affected by this adjustment.

To adjust flow rate and operating speed turn flow control knob (A):

• Counterclockwise “Rabbit”—Increase flow rate and speed
• Clockwise “Turtle”—Decrease flow rate and speed
