Adjusting Seat—Mechanical Suspension

CAUTION: To avoid accidents, adjust seat before driving.

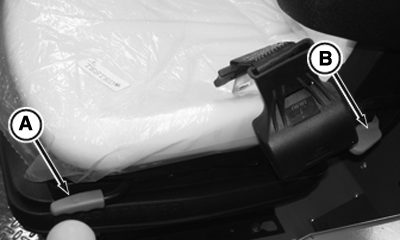

PY14632-UN-23AUG12

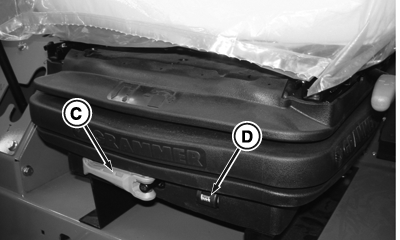

PY14633-UN-01JUN12

A - Forward/Backward Adjustment Lever

B - Backrest Adjustment Lever

C - Weight Adjustment Lever

D - Display Window

Backrest: Lift lever (B) and tilt backrest to desired position. Release lever to lock in place.

Weight: Rotate lever (C) away from seat and turn:

• Clockwise—Increase load
• Counterclockwise—Reduce load

Desired weight setting appears in display window (D). Weight level range is 50-130 kg (110-285 lbs.). Rotate lever toward seat when done.

IMPORTANT: Internal damage could occur to the seat mechanism. When turning weight adjustment lever to reduce load; stop turning handle when seat reaches minimum weight adjustment position and handle resistance increases.

NOTE: Suspension should not bottom out when properly adjusted.

Height: To adjust the seat upward, lift seat pan until it clicks into place (maximum of 3 detent positions). To adjust downward, lift the seat to the stop position and then lower it.

Armrest Height:

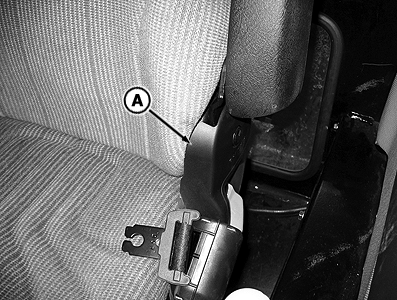

P15427-UN-10APR08

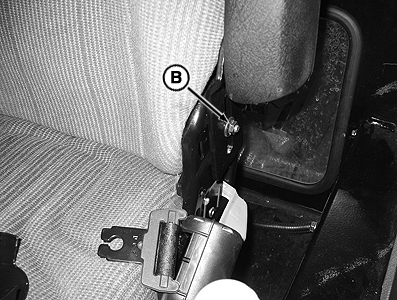

P15428-UN-10APR08

A - Plastic Cover

B - Nut

1. Pry plastic cover (A) away from seat.

2. Loosen nut (B).

3. Slide armrest up or down in adjustment slots to desired height and tighten hardware.

4. Repeat procedure for opposite armrest.
