Adjust Seat—Air Suspension

LV14513-UN-29JUL11

Air Suspension Seat

LV21985-UN-03JUN14

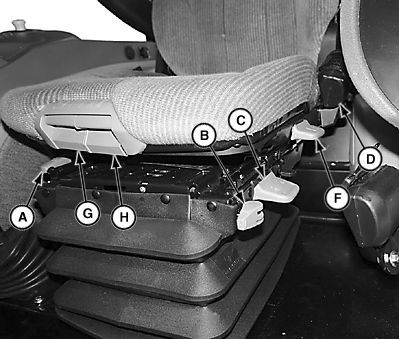

A - Forward/Backward Adjustment Lever

B - Forward/Backward Suspension Adjustment Lever

C - Weight Adjustment Lever

D - Backrest Tilt Adjustment Lever

E - Lumbar Support Adjustment Knob

F - Swivel Adjustment Lever (If Equipped)

G - Cushion Position Adjustment Lever

H - Lower Cushion Tilt Adjustment Lever

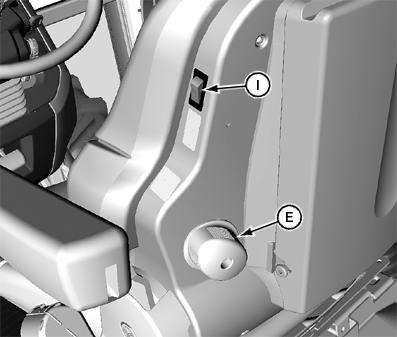

I - Seat Warmer Switch (If Equipped)

CAUTION: Avoid accidents. Adjust seat before driving.

IMPORTANT: After adjusting seat, make sure that all controls can be easily accessed.

Adjust to suit operator. Eight seat adjustments are available:

Forward/Backward Adjustment

1. Lift forward/backward adjustment lever (A) up.
2. Slide seat to desired position.
3. Release forward/backward adjustment lever (A) to lock seat in position.

Forward/Backward Suspension Adjustment

• Flip lever (B) forward for forward/backward suspension.
• Flip lever (B) rearward for NO forward/rearward suspension.

Weight Adjustment

1. Lift weight adjustment lever (C) up.
2. Reach desired suspension travel for operator weight. NOTE: Suspension should not bottom out when properly adjusted.

3. Release lever (C) to lock seat in position.

Backrest Tilt Adjustment

1. Lift backrest tilt adjustment lever (D).
2. Tilt backrest forward or rearward as desired.
3. Release backrest tilt adjustment lever (D) to lock seat in position.

Lumbar Adjustment

Turn lumbar adjustment knob (E) to increase or decrease support to lower back.

Swivel Adjustment

1. Lift swivel adjustment lever (F) up.
2. Rotate seat to desired position. The seat turns 15° to the left and right. The seat locks at 7.5° intervals.
3. Release swivel adjustment lever (F) to lock seat in position.

Cushion Position

1. Lift lever (G) to tilt seat cushion up.
2. Lift Lever (H) to lower tilt of the cushion.

Seat Warmer Switch (If Equipped)

To activate seat warmer, push top portion of seat warmer switch (I) to ON position.
