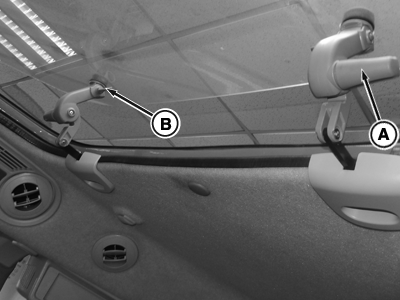

Sun Roof

PY13326-UN-27APR15

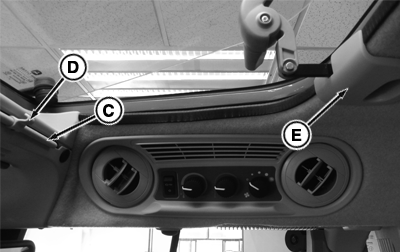

Sun Roof

PY13327-UN-27APR15

Sun Roof Shade

A - Lever

B - Pin

C - Sun Roof Shade

D - Handle

E - Retainer

Using levers (A), sun roof can be opened for better air circulation.

Sun roof can be used as an emergency exit by removing pins (B) and fully opening.

NOTE: Sun roof is able to open with sun roof shade in place.

Sun roof is equipped with a sun roof shade (C). To use sun roof shade, pull shade out using handle (D). Secure handle to retainer (E).

NOTE: Sun roof shade is spring-loaded for ease in retracting. Hold handle securely when removing from retainer.

To retract sun roof shade, remove handle from retainer. Sun roof shade is spring-loaded and retracts into storage housing.
